SKIP

POWERFUL

SKIP

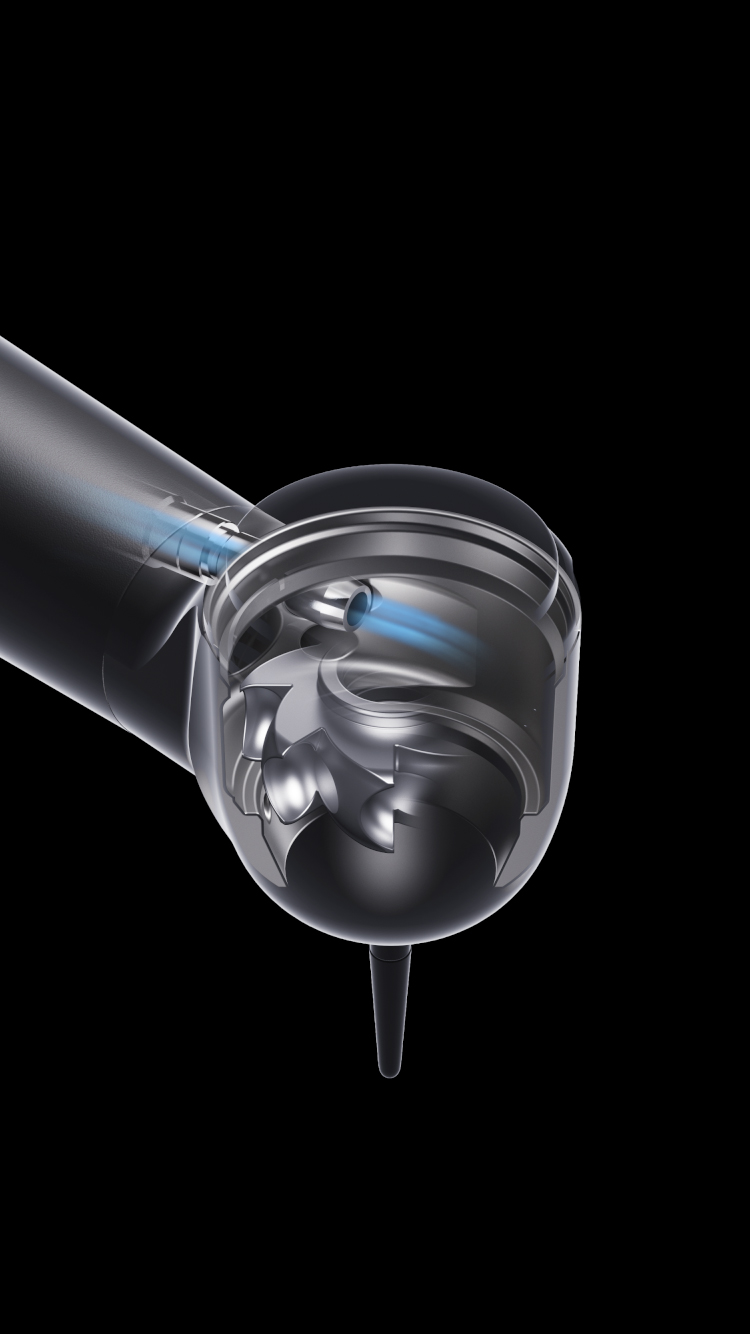

Extended
Cylindrical Nozzle

SKIP

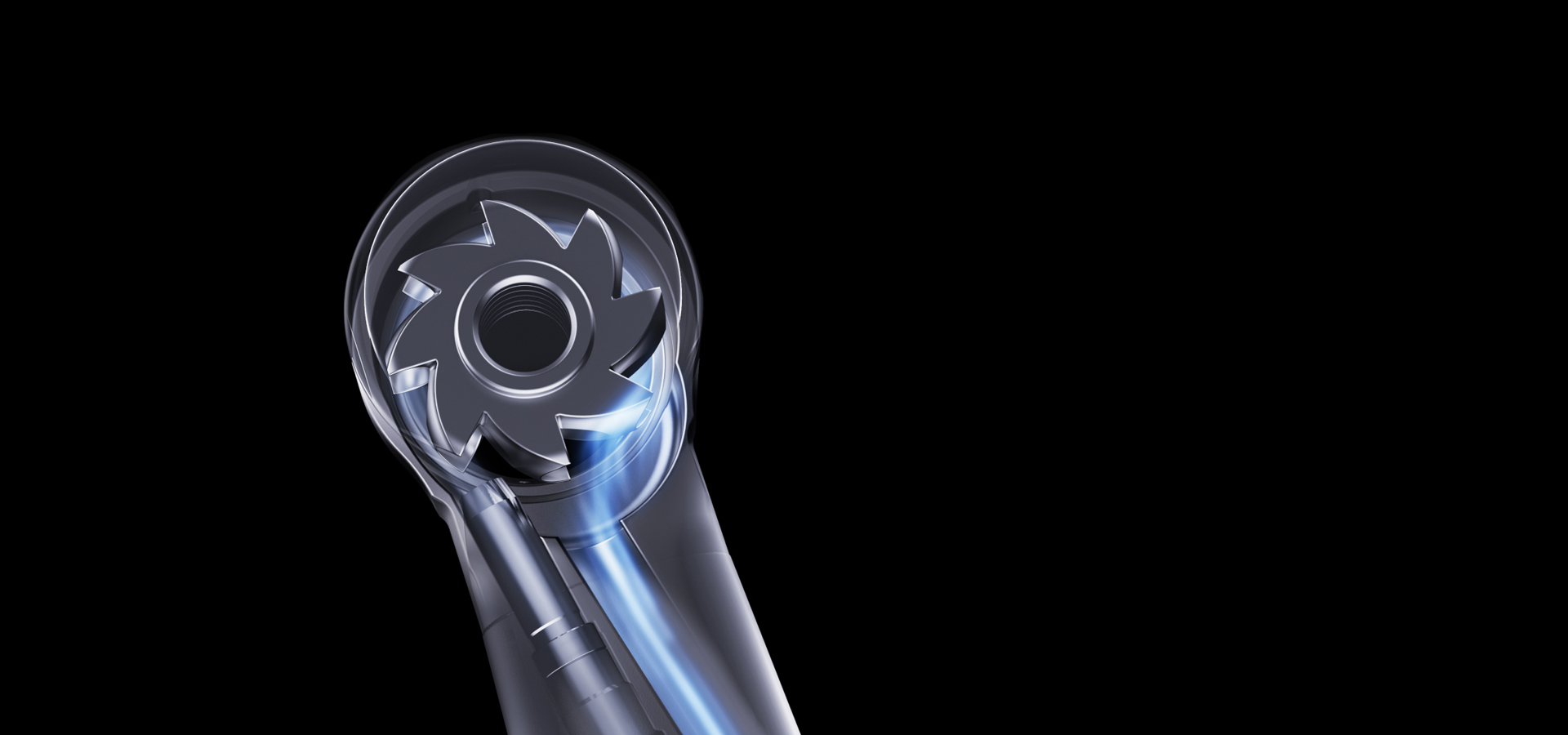

Extended

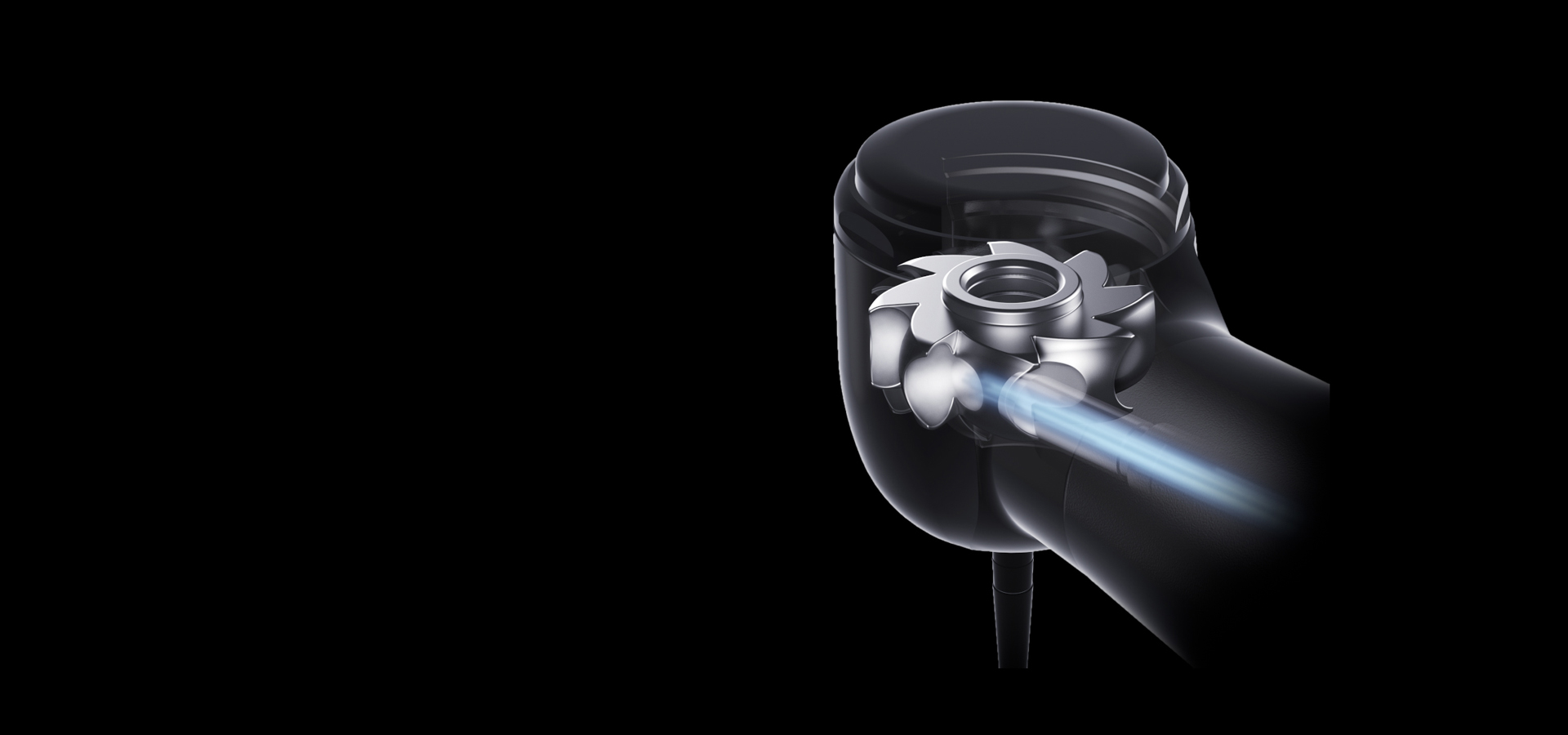

Rotar Bucket

SKIP

Extended

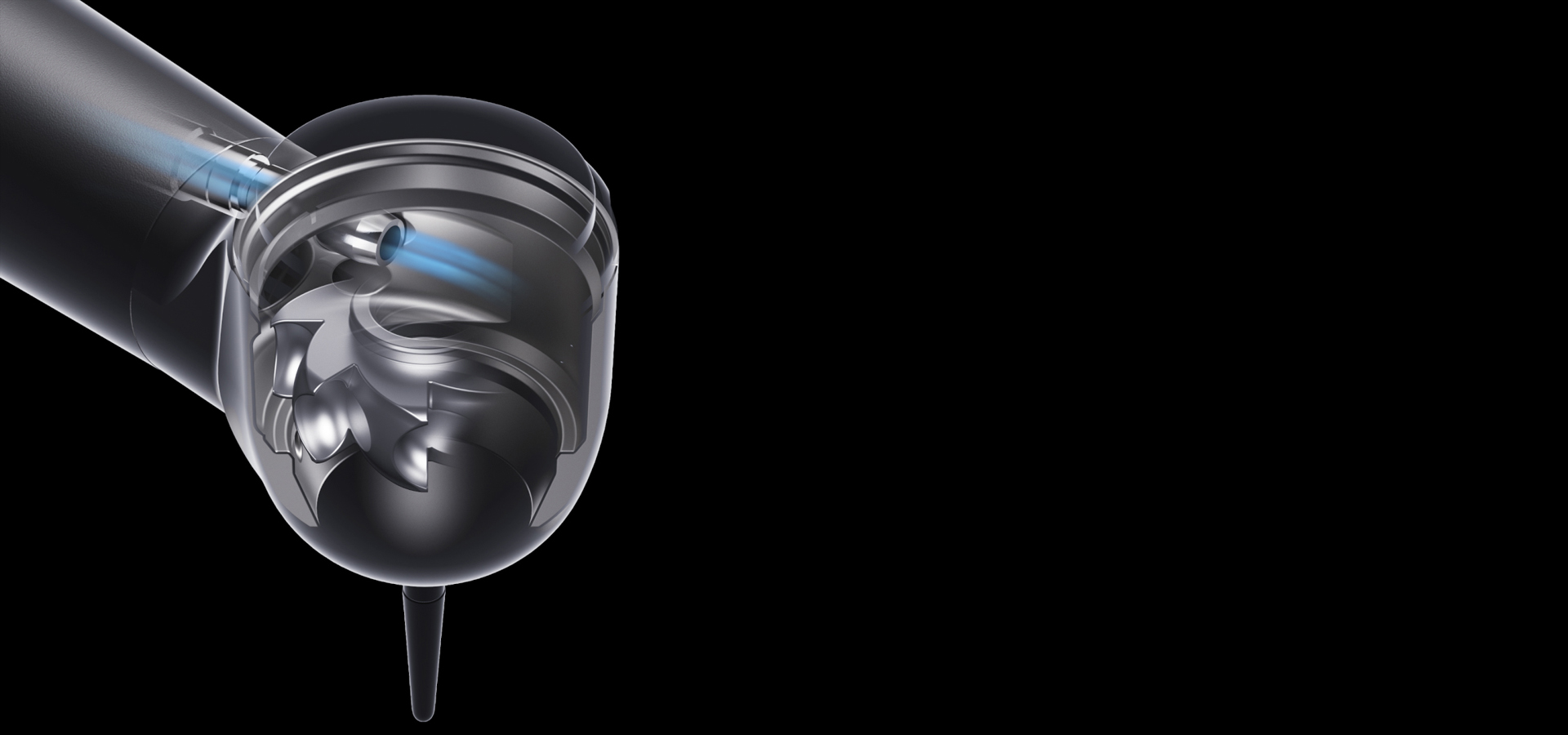

Exhaust Groove

SKIP

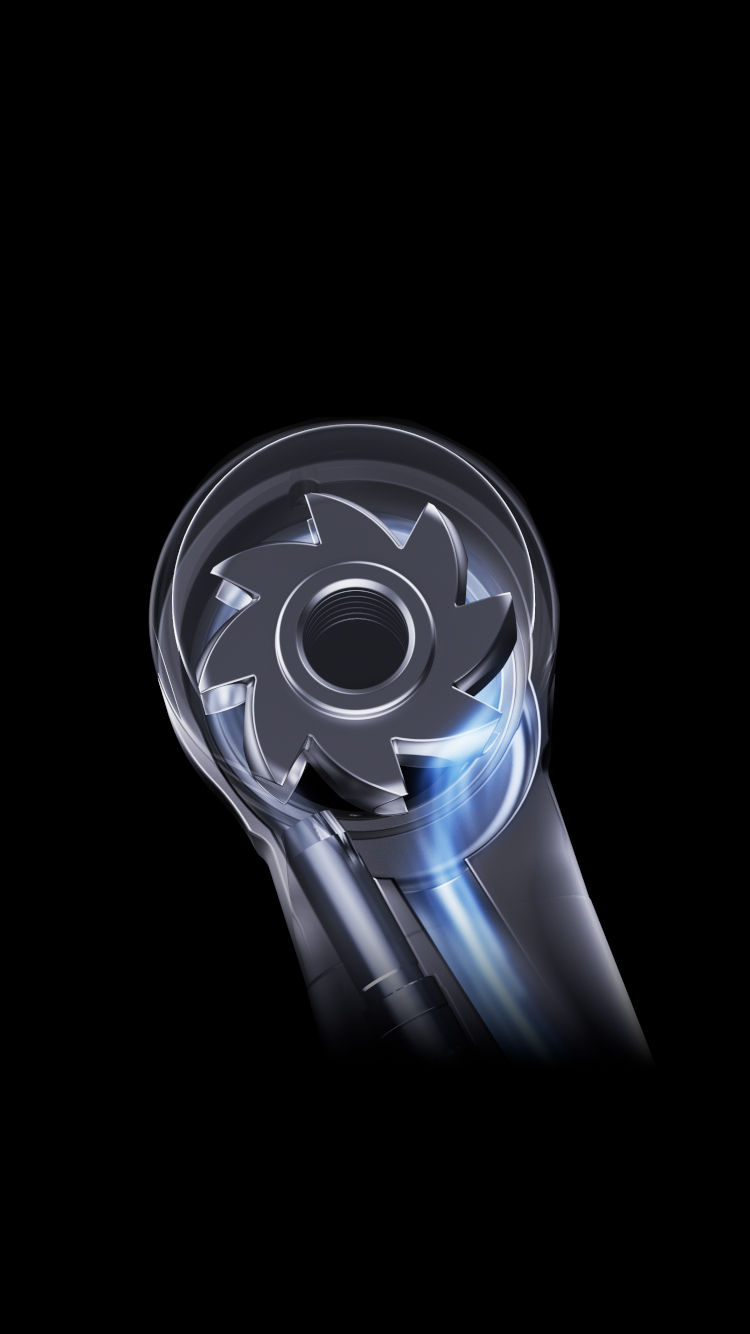

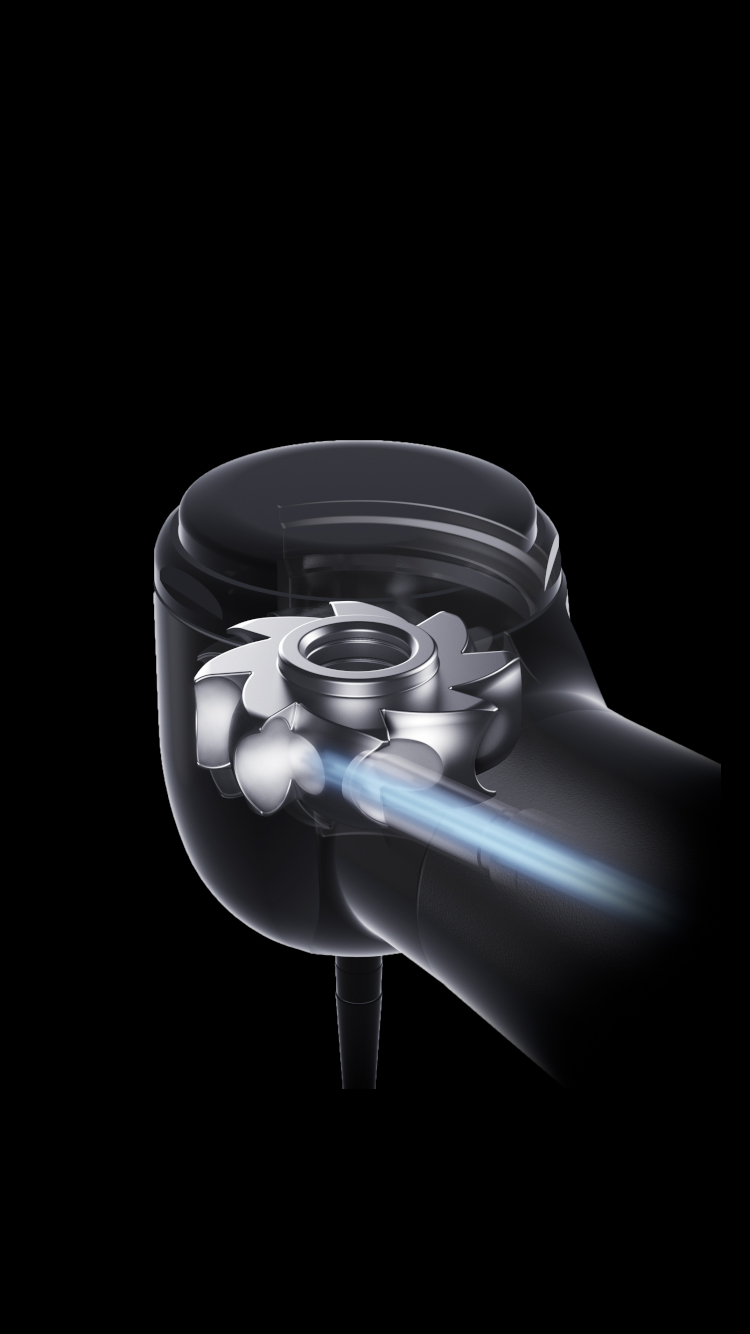

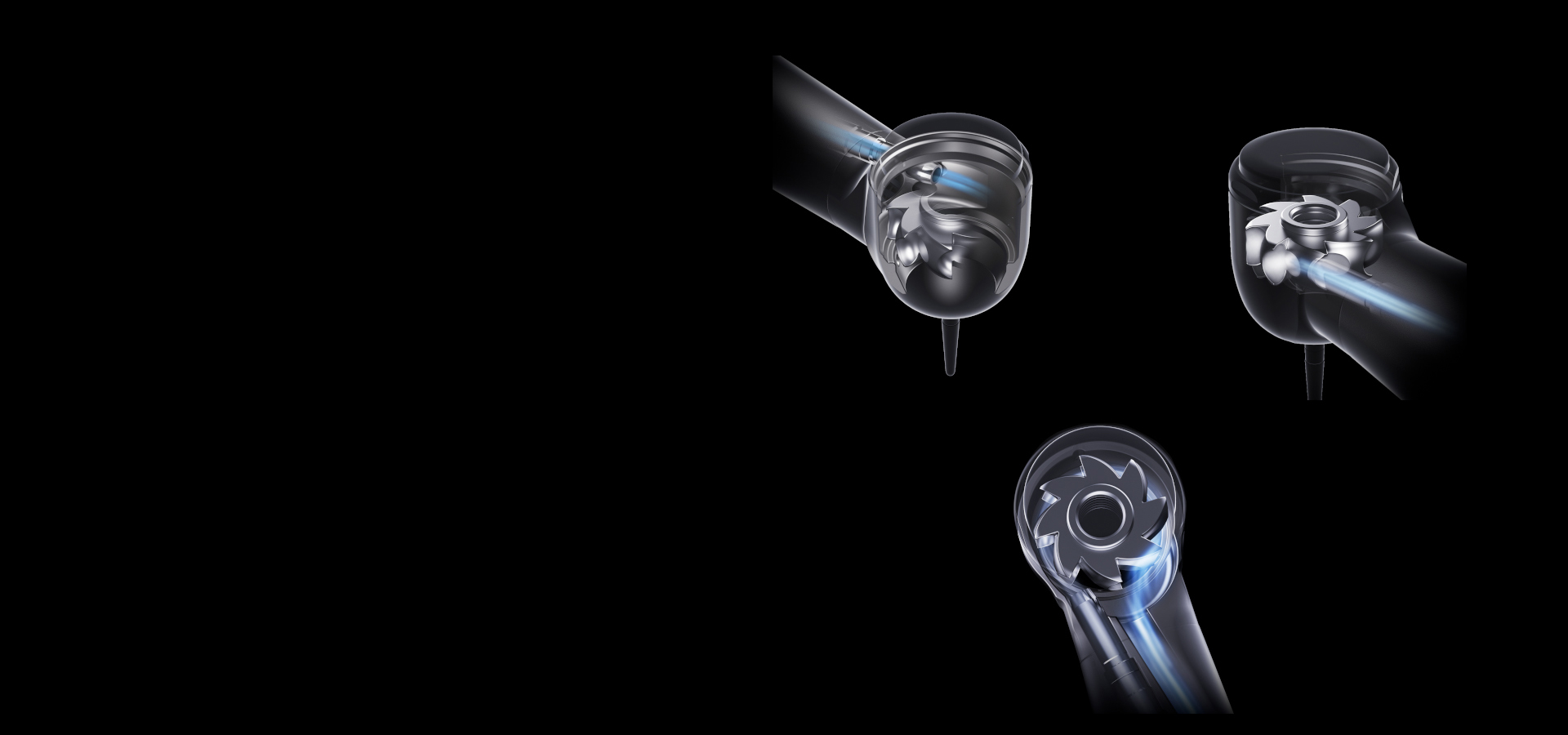

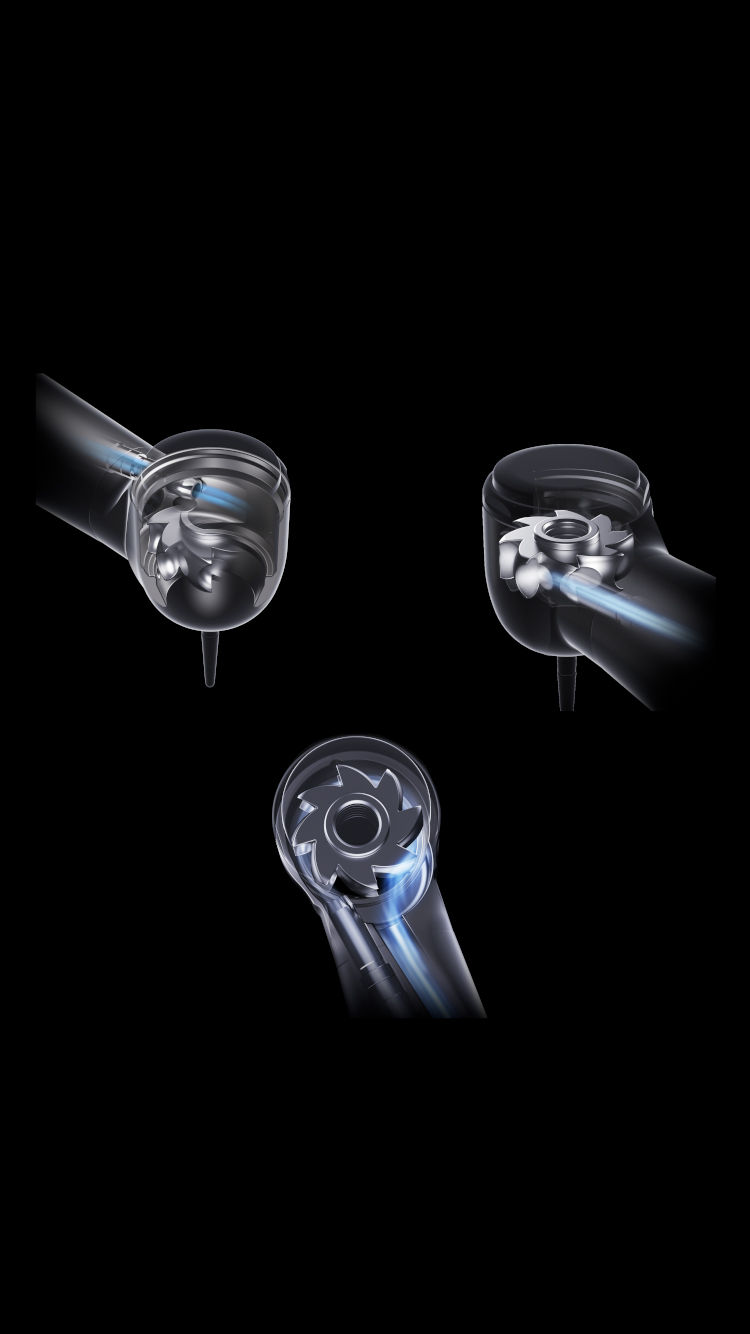

3X-POWER SYSTEM

26W High Power

The new rotor shape was developed using a state-of-the-art computer simulation and fluid analysis software.
This rotor delivers a significant 6W boost in power from 20W to 26W.

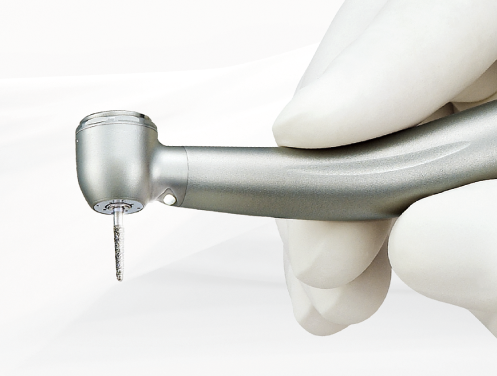

The handpiece becomes an extension of the operator and provides a cutting feel that facilitates more intricate operations.
Its elegant, slim design is replete with the expertise and technology accumulated over decades by the handpiece experts at NSK.

Technology & Function

  • Interchangeable Cartridge
    Interchangeable Cartridge

    Cartridges are easily replaced in your practice helping you reduce costs and down-time. The replacement cartridge incorporates the spray holes to guarantee cartridge and water spray always work well together.

  • Clean Head System
    Clean Head System

    The Clean Head System has an anti-suck back mechanism that stops blood and foreign matter from entering the head from the oral cavity. As a result, the ball bearings and mechanical parts last longer.

  • Wide Fitting
    Wide Fitting

    This lineup features models that are compatible with couplings of all companies, and can be connected to units currently in use. With this design, you can easily use NSK handpieces without being tied down to a particular unit.
    *Compatible couplings differ depending on the series.

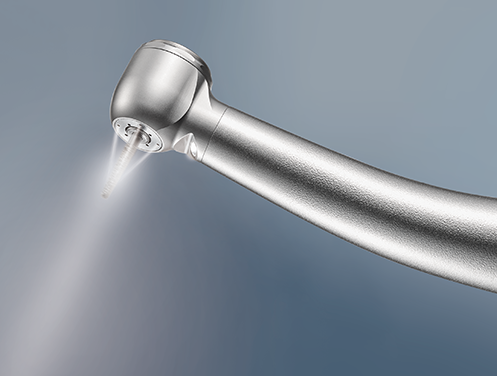

  • Quattro Spray
    Quattro Spray

    Sprays more effectively over the entire bur for better cooling.

  • All Stainless Body
    All Stainless Body

    The handpiece body is stainless steel, making it corrosion resistant and sturdy. Its satin-like finish fits comfortably in your hand.

S-Max M Series

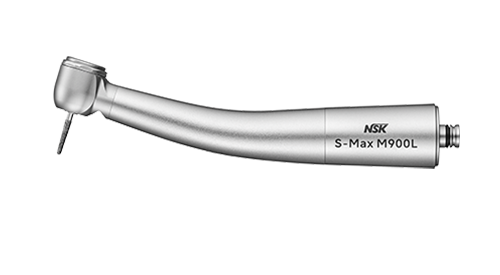

M900L

M900L

  • Optic
  • Model:M900L
  • Order Code:P1254
  • Non-Optic
  • Model:M900
  • Order Code:P1256

Specifications

  • Head
  • Standard Head
  • Power
  • 26 W
  • Rotation
  • 325,000-430,000 min-1
  • Head Size
  • Ø12.1 x H 13.3 mm
  • Water Spray
  • Quattro Spray
  • Body Material
  • Stainless Steel

Features

  • Cellular Glass Optics
  • Ceramic Bearings
  • Clean Head System
  • Push Button Chuck
  • Interchangeable Cartridge

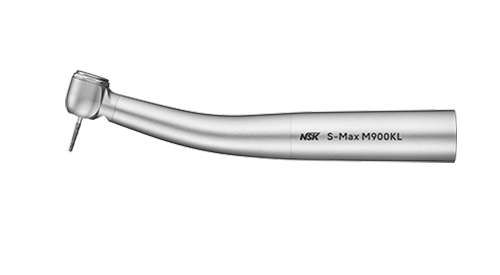

M900KL

M900KL

  • Optic
  • Model:M900KL
  • Order Code:P1258
  • Non-Optic
  • Model:M900K
  • Order Code:P1259

Specifications

  • Head
  • Standard Head
  • Power
  • 26 W
  • Rotation
  • 325,000-430,000 min-1
  • Head Size
  • Ø12.1 x H 13.3 mm
  • Water Spray
  • Quattro Spray
  • Body Material
  • Stainless Steel

Features

  • Cellular Glass Optics
  • Ceramic Bearings
  • Clean Head System
  • Push Button Chuck
  • Interchangeable Cartridge

Lineup

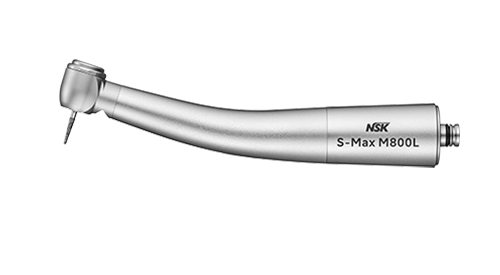

M800L

M800L

  • Optic
  • Model:M800L
  • Order Code:P1253
  • Non-Optic
  • Model:M800
  • Order Code:P1255

Specifications

  • Head
  • Miniature Head
  • Power
  • 23 W
  • Rotation
  • 380,000-450,000 min-1
  • Head Size
  • Ø10.6 x H 12.4 mm
  • Water Spray
  • Quattro Spray
  • Body Material
  • Stainless Steel

Features

  • Cellular Glass Optics
  • Ceramic Bearings
  • Clean Head System
  • Push Button Chuck
  • Interchangeable Cartridge

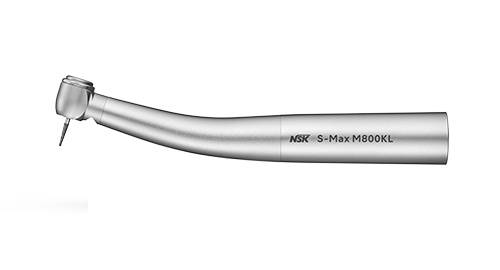

M800KL

M800KL

  • Optic
  • Model:M800KL
  • Order Code:P1257

Specifications

  • Head
  • Miniature Head
  • Power
  • 23 W
  • Rotation
  • 380,000-450,000 min-1
  • Head Size
  • Ø10.6 x H 12.4 mm
  • Water Spray
  • Quattro Spray
  • Body Material
  • Stainless Steel

Features

  • Cellular Glass Optics
  • Ceramic Bearings
  • Clean Head System
  • Push Button Chuck
  • Interchangeable Cartridge
