Feel the Satisfaction of X Series Performance

NSK X series contra-angles feature the advanced technology combined with elegant yet ergonomic design. X series contra-angles have been designed without compromise paying attention to every last detail. Better possible access to the operating field and maximum visibility were the most important criteria during the design process of the instrument body. Unrivaled reliability and superior operator and patient comfort reflect all the expertise which has been built into each and every model of the NSK Ti-Max X Series.

Technology & Function

General Applications

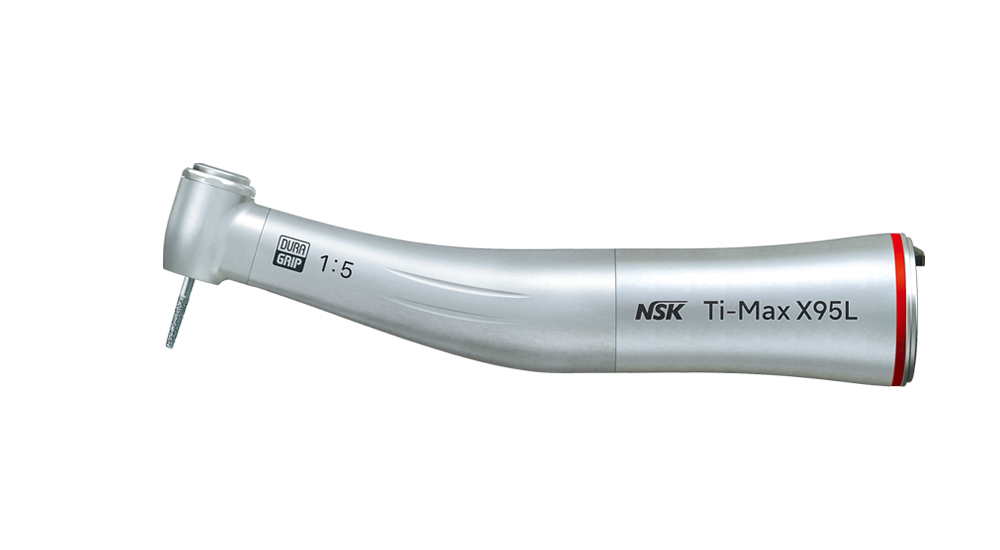

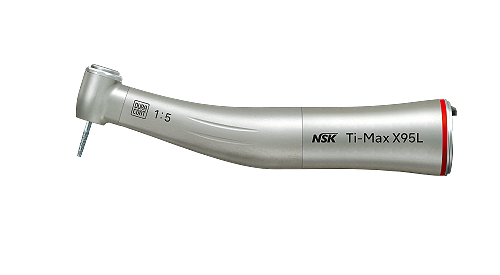

X95L1:5

  • General Applications/ X95L
    • Optic
    • Model:X95L
    • Order Code:C600
    • Non-Optic
    • Model:X95
    • Order Code:C610

    Specifications

    • Gear Ratio
    • 1:5 Increasing
    • For
    • FG Burs (Ø1.6)
    • Water Spray
    • Quattro Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 200,000 min-1

    Features

    • Cellular Glass Optics
    • Ceramic Bearings
    • Clean Head System
    • Push Button Chuck
    • Microfilter

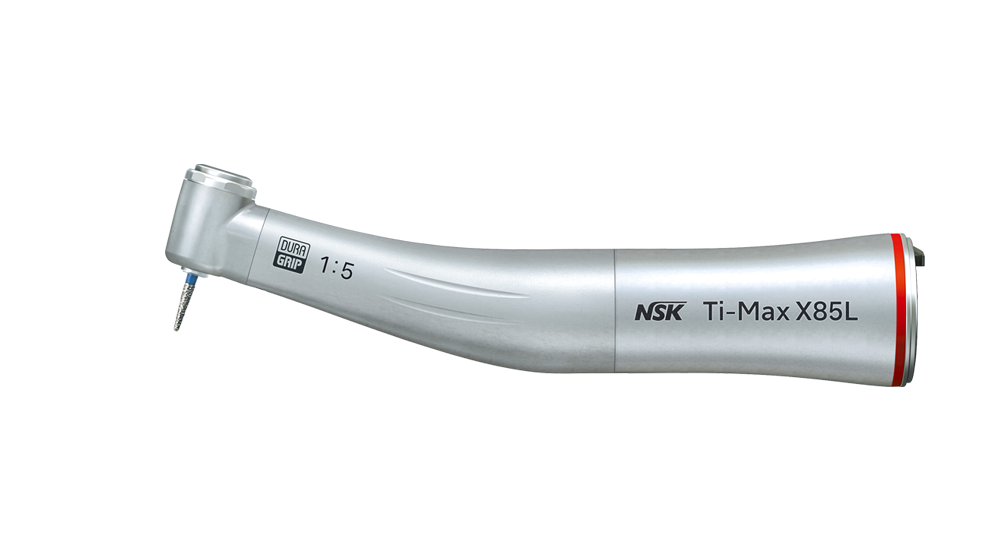

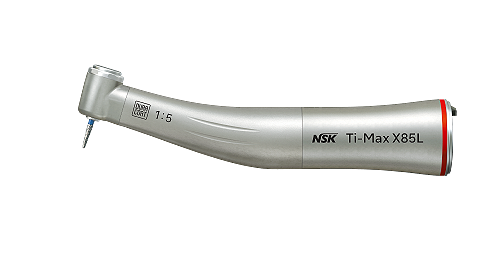

X85L1:5

  • General Applications/X85L
    • Optic
    • Model:X85L
    • Order Code:C604
    • Non-Optic
    • Model:X85
    • Order Code:C614

    Specifications

    • Head
    • Miniature Head
    • Gear Ratio
    • 1:5 Increasing
    • For
    • FG Burs (Ø1.6)
    • Water Spray
    • Single Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 200,000 min-1

    Features

    • Cellular Glass Optics
    • Ceramic Bearings
    • Clean Head System
    • Push Button Chuck
    • Microfilter

    Short shank burs only

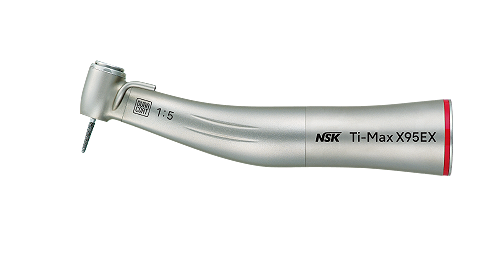

X95EX1:5

  • General Applications/X95EX
    • Non-Optic
    • Model:X95EX
    • Order Code:C1072

    Specifications

    • Gear Ratio
    • 1:5 Increasing
    • For
    • FG Burs (Ø1.6)
    • Head Size
    • Ø10.0 x H 14.6 mm
    • Water Spray
    • Quattro Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 200,000 min-1

    Features

    • External Water Spray
    • Ceramic Bearings
    • Clean Head System
    • Push Button Chuck

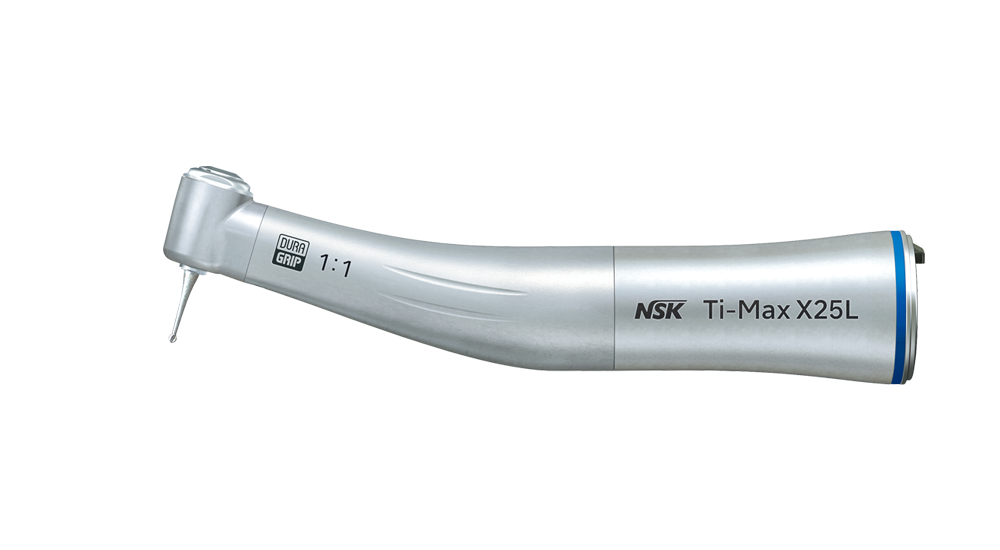

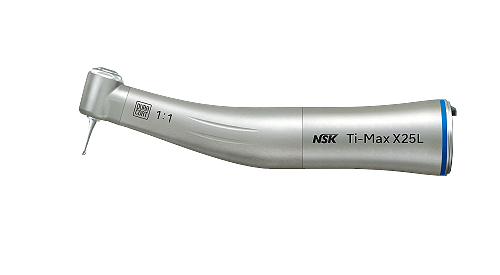

X25L1:1

  • General Applications/X25L
    • Optic
    • Model:X25L
    • Order Code:C601
    • Non-Optic
    • Model:X25
    • Order Code:C611

    Specifications

    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • CA Burs (Ø2.35)
    • Water Spray
    • Single Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 40,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
    • Push Button Chuck
    • Microfilter

X20L1:1

  • General Applications/X20L
    • Optic
    • Model:X20L
    • Order Code:C605
    • Non-Optic
    • Model:X20
    • Order Code:C615

    Specifications

    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • FG Burs (Ø1.6)
    • Water Spray
    • Single Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 40,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
    • Push Button Chuck
    • Microfilter

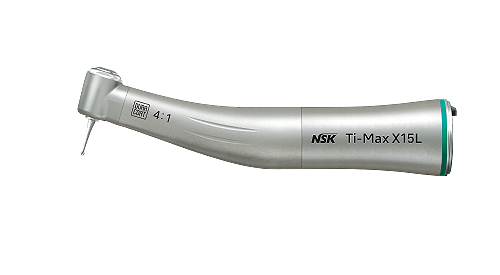

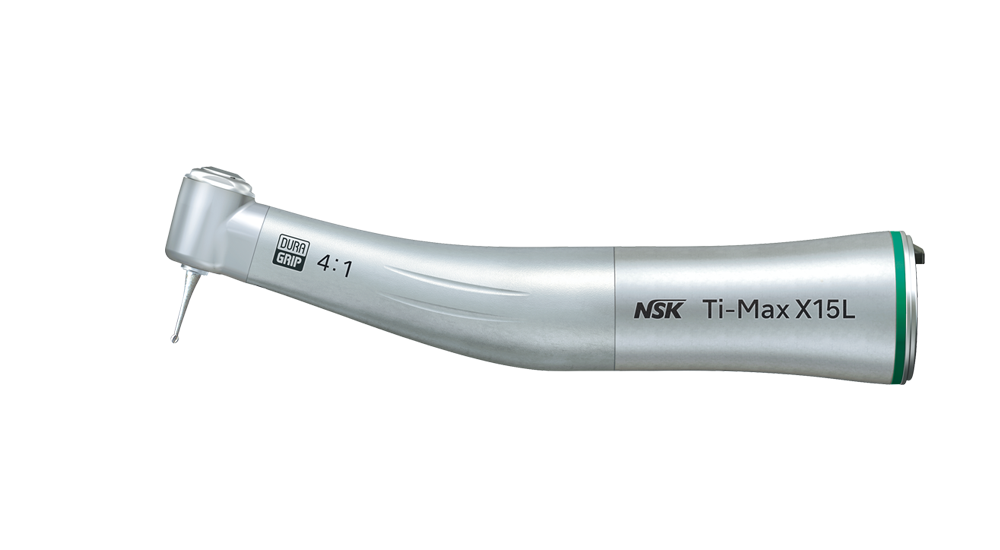

X15L4:1

  • General Applications/X15L
    • Optic
    • Model:X15L
    • Order Code:C602
    • Non-Optic
    • Model:X15
    • Order Code:C612

    Specifications

    • Gear Ratio
    • 4:1 Reduction
    • For
    • CA Burs (Ø2.35)
    • Water Spray
    • Single Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 10,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
    • Push Button Chuck
    • Microfilter

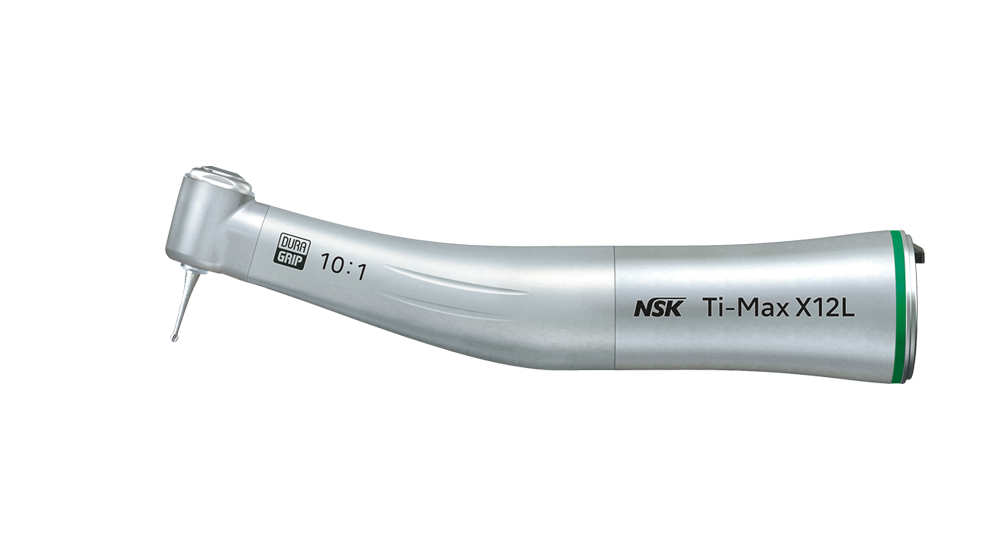

X12L10:1

  • General Applications/X12L
    • Optic
    • Model:X12L
    • Order Code:C606
    • Non-Optic
    • Model:X12
    • Order Code:C616

    Specifications

    • Gear Ratio
    • 10:1 Reduction
    • For
    • CA Burs (Ø2.35)
    • Water Spray
    • Single Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 4,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
    • Push Button Chuck
    • Microfilter

X10L16:1

  • General Applications/X10L
    • Optic
    • Model:X10L
    • Order Code:C603
    • Non-Optic
    • Model:X10
    • Order Code:C613

    Specifications

    • Gear Ratio
    • 16:1 Reduction
    • For
    • CA Burs (Ø2.35)
    • Water Spray
    • Single Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 2,500 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
    • Push Button Chuck
    • Microfilter

Straight Handpieces

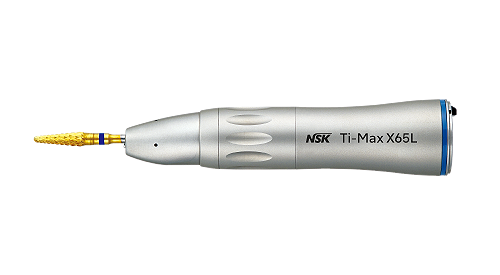

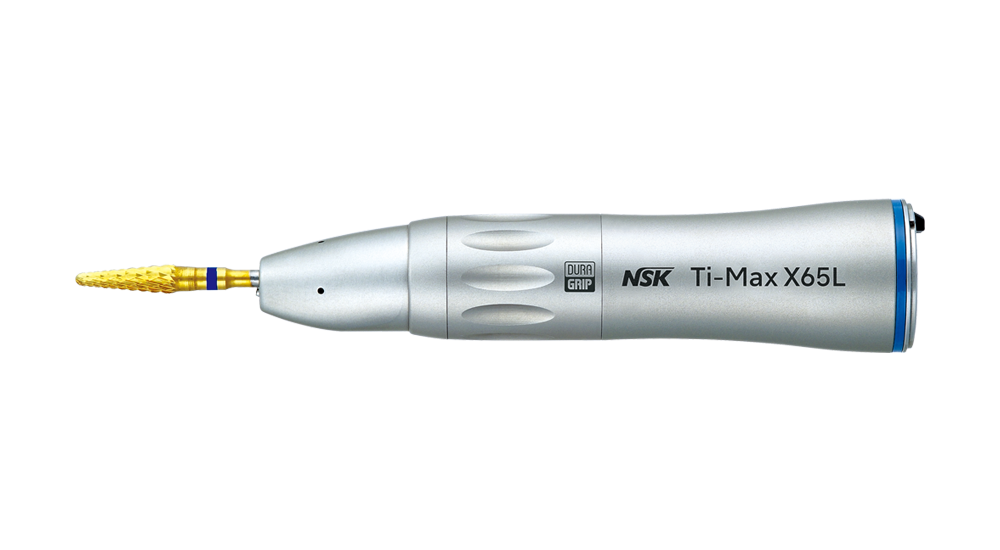

X65L1:1

  • Straight Handpieces/X65L
    • Optic
    • Model:X65L
    • Order Code:H273
    • Non-Optic
    • Model:X65
    • Order Code:H274

    Specifications

    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • HP Burs (Ø2.35) / CA Burs (Ø2.35)*
    • Water Spray
    • Single Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 40,000 min-1

    * Need to insert the supplied bur stopper

    Features

    • Cellular Glass Optics
    • Clean Head System

Endodontics Applications

X75L128:1

  • Endodontics Applications/X75L
    • Optic
    • Model:X75L
    • Order Code:C623
    • Non-Optic
    • Model:X75
    • Order Code:C627

    Specifications

    • Gear Ratio
    • 128:1 Reduction
    • For
    • Engine File / 360° Rotation
    • Water Spray
    • Single Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 300 min-1

    Features

    • Cellular Glass Optics
    • Push Button Chuck
    • Microfilter

X70L64:1

  • Endodontics Applications/X70L
    • Optic
    • Model:X70L
    • Order Code:C622
    • Non-Optic
    • Model:X70
    • Order Code:C626

    Specifications

    • Gear Ratio
    • 64:1 Reduction
    • For
    • Engine File / 360° Rotation
    • Water Spray
    • Single Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 600 min-1

    Features

    • Cellular Glass Optics
    • Push Button Chuck
    • Microfilter

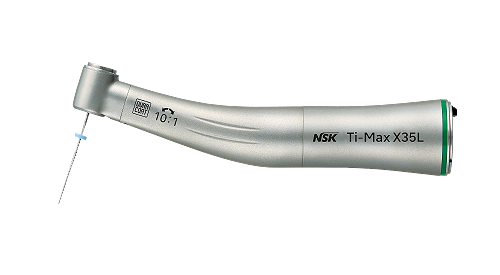

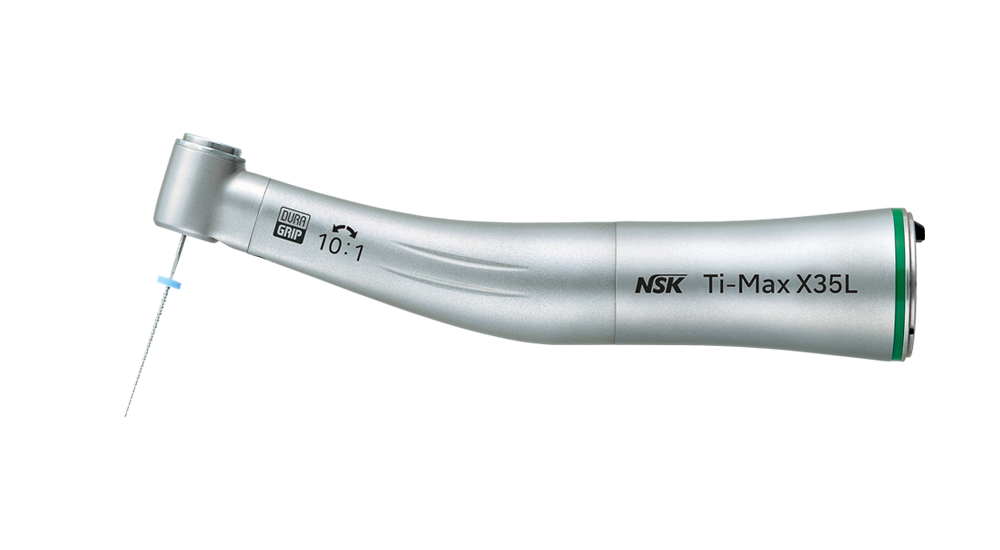

X35L10:1

  • Endodontics Applications/X35L
    • Optic
    • Model:X35L
    • Order Code:C620
    • Non-Optic
    • Model:X35
    • Order Code:C624

    Specifications

    • Gear Ratio
    • 10:1 Reduction
    • For
    • Hand File & Engine File / 60° Twist
    • Water Spray
    • Single Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 4,000 min-1

    Features

    • Cellular Glass Optics
    • Push Button Chuck
    • Microfilter

    Please keep the rotation speed with your file manufacturers designate.

Prophylaxis Applications

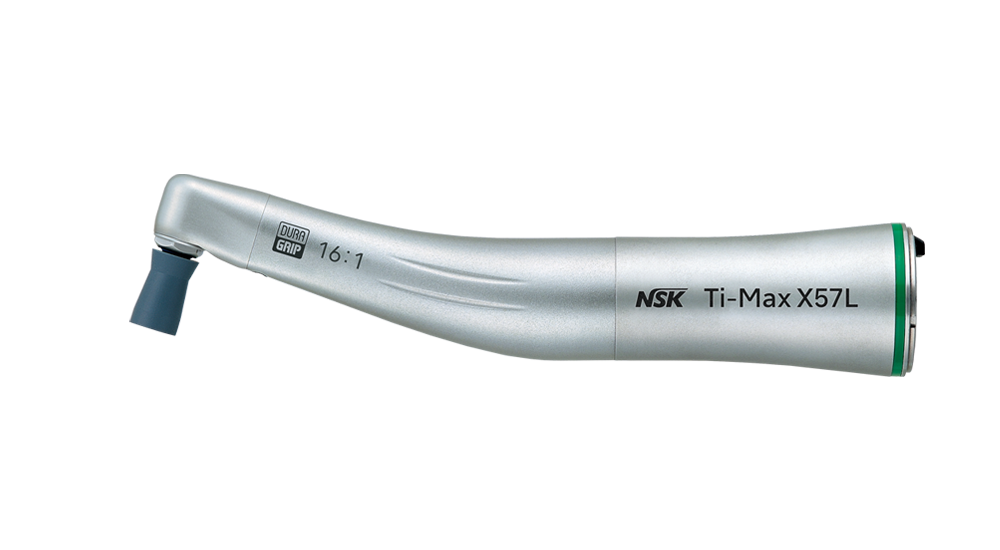

X57L16:1

  • Prophylaxis Applications/X57L
    • Optic
    • Model:X57L
    • Order Code:C609
    • Non-Optic
    • Model:X57
    • Order Code:C619

    Specifications

    • Gear Ratio
    • 16:1 Reduction
    • For
    • Screw-in Cups and Brushes / 360° Rotation
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 2,500 min-1

    Features

    • Cellular Glass Optics
    • Special Dust Proof

X55L4:1

  • Prophylaxis Applications/X55L
    • Optic
    • Model:X55L
    • Order Code:C608
    • Non-Optic
    • Model:X55
    • Order Code:C618

    Specifications

    • Gear Ratio
    • 4:1 Reduction
    • For
    • Profin / EVA Tips
      Vertical Reciprocating (Stroke Length 1.4 mm)
    • Water Spray
    • Single Spray
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 10,000 min-1

    Features

    • Cellular Glass Optics
    • Microfilter
    • With Tip Lock Mechanism

    Lamineer tips not included

Surgical Applications

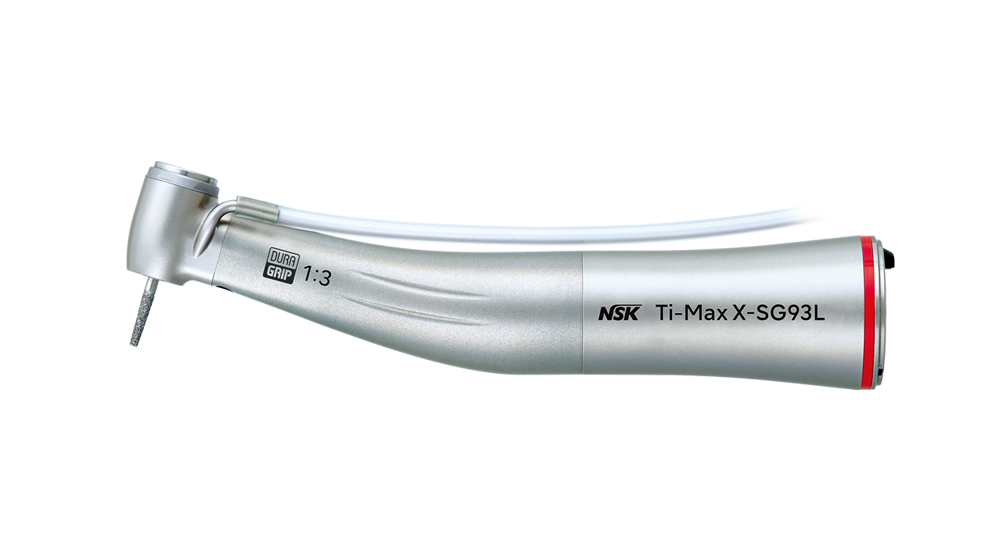

X-SG93L1:3

  • Surgical Applications/X-SG93L
    • Optic
    • Model:X-SG93L
    • Order Code:C1004
    • Non-Optic
    • Model:X-SG93
    • Order Code:C1007

    Specifications

    • Gear Ratio
    • 1:3 Increasing
    • For
    • FG Burs (Ø1.6)
    • Water Spray
    • Triple Spray / External Cooling
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 120,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
    • Push Button Chuck

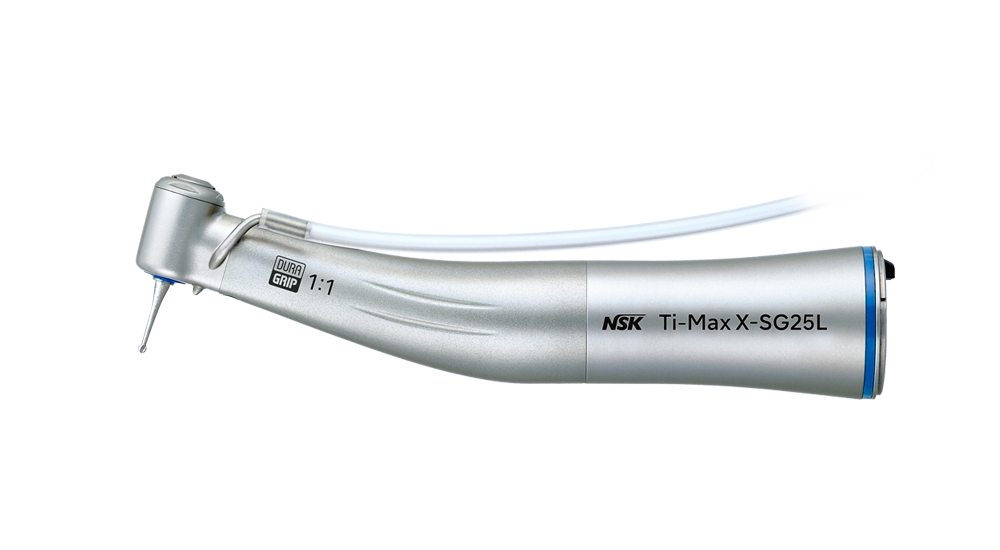

X-SG25L1:1

  • Surgical Applications2/X-SG25L
    • Optic
    • Model:X-SG25L
    • Order Code:C1011

    Specifications

    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • CA Burs (Ø2.35)
    • Water Spray
    • External Cooling
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 40,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
    • Push Button Chuck

X-SG65L1:1

  • Surgical Applications/X-SG65L
    • Optic
    • Model:X-SG65L
    • Order Code:H1009
    • Non-Optic
    • Model:X-SG65
    • Order Code:H1038

    Specifications

    • Gear Ratio
    • 1:1 Direct Drive
    • For
    • HP Burs (Ø2.35)
    • Water Spray
    • External Cooling
    • Body Material
    • Titanium
    • Body Coating
    • DURACOAT
    • Max Speed
    • 40,000 min-1

    Features

    • Cellular Glass Optics
    • Clean Head System
