Shorter, Perfectly Balanced

Lighter and perfectly balanced, "nano series" instruments are designed to be natural extensions of the clinician’s hand, ensuring smoother procedures. Even during implant operations that require delicate and precise movements, a "nano series" faithfully mirrors the user’s intent. NSK continues to challenge the limits of manufacturing and pioneer next-generation contra-angles.

Technology & Function

  • Smart Miniaturization Enables Perfect Balance
    Smart Miniaturization Enables Perfect Balance

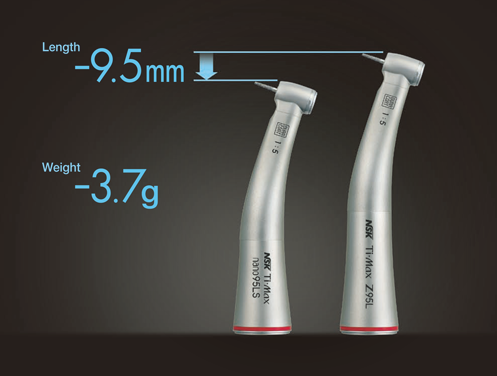

    NSK's nano series preserves the high performance NSK contra-angles are known for, while these new instruments are approximately 10 percent smaller and lighter than conventional models. Yet, in combination with NLX nano micromotor nano series gives you the ease of manoeuvrability and accuracy you are used to from your air-turbine.

  • Perfect Balance
    Perfect Balance

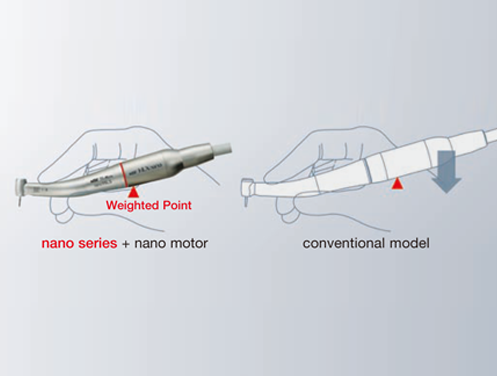

    Reducing size and weight shifts the center of gravity to an optimal position, dramatically reducing fatigue during procedures and improving your fingertip dexterity.

  • Smaller and Slimmer
    Smaller and Slimmer

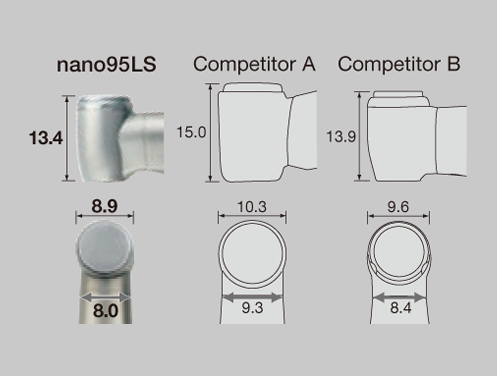

    nano95LS has smaller head and slimmer neck dimensions.

  • Microfilter
    Microfilter

    Microfilter to prevent particles from entering the water spray system to guarantee optimum water spray cooling at all times.

  • Titanium Body
    Titanium Body

    Titanium body*. Light and very strong pure titanium is used for the body. The light handpiece reduces the burden on the hands during operations, and its enhanced hardness also improves its ability for autoclave sterilization. The biocompatible properties of titanium eliminate concern over allergies to metals.
    *Titanium is used only for the exterior parts, and not for the interior.

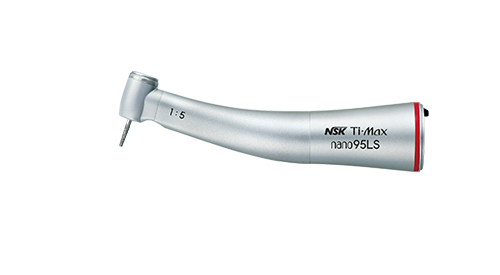

nano95LS 1:5

nano95LS

  • Optic
  • Model:nano95LS
  • Order Code:C1099

Specifications

  • Gear Ratio
  • 1:5 Increasing
  • For
  • FG Burs (Ø1.6)
  • Water Spray
  • Quattro Spray
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 200,000 min-1

Features

  • Anti Heat System
  • Cellular Glass Optics
  • Ceramic Bearings
  • Clean Head System
  • Push Button Chuck
  • Microfilter
  • Exceptional Durability

nano25LS 1:1

nano25LS

  • Optic
  • Model:nano25LS
  • Order Code:C1100

Specifications

  • Gear Ratio
  • 1:1 Direct Drive
  • For
  • For CA Burs (Ø2.35)
  • Water Spray
  • Single Spray
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 40,000 min-1

Features

  • Anti Heat System
  • Cellular Glass Optics
  • Clean Head System
  • Push Button Chuck
  • Microfilter

nano15LS 4:1

nano15LS

  • Optic
  • Model:nano15LS
  • Order Code:C1101

Specifications

  • Gear Ratio
  • 4:1 Reduction
  • For
  • For CA Burs (Ø2.35)
  • Water Spray
  • Single Spray
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 10,000 min-1

Features

  • Anti Heat System
  • Cellular Glass Optics
  • Clean Head System
  • Push Button Chuck
  • Microfilter

nano65LS 1:1

nano65LS

  • Optic
  • Model:nano65LS
  • Order Code:H1048

Specifications

  • Gear Ratio
  • 1:1 Direct Drive
  • For
  • For HP / CA Burs (Ø2.35)*
  • Water Spray
  • Single Spray
  • Body Material
  • Titanium
  • Body Coating
  • DURAGRIP
  • Max Speed
  • 40,000 min-1

* Need to insert the supplied bur stopper

Features

  • Cellular Glass Optics
  • Clean Head System
