Smarter and Safer

Cordless Endodontic Handpiece with Torque Control and Auto Reverse

Technology & Function

  • Mini Head & Slim Neck
    Mini Head & Slim Neck

    Slim head and neck assures higher visibility.

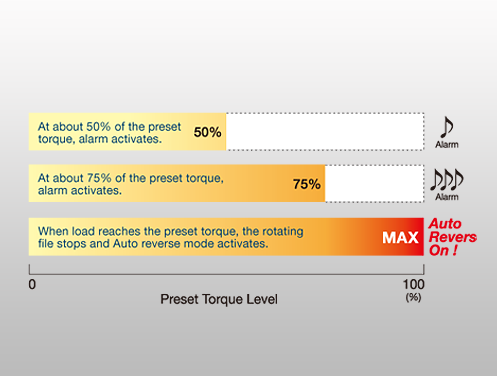

  • Alarm Sound of Two
    Alarm Sound of Two

    Two kinds of alarm sound for safer and efficient treatment (For ENDO-MATE TC2).

  • Program Function
    Program Function

    • User definable 5 presets – Speed, Torque,Gear Ratio & Auto Reverse mode
    • Last program settings can be memorized when the power turns on

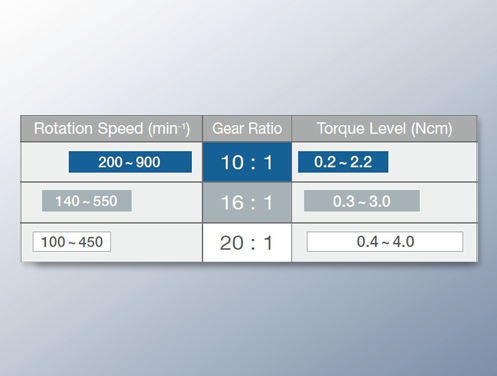

  • Ni-Ti Files
    Ni-Ti Files

    Suitable for use with most major brands of Ni-Ti files
    Selecting gear ratio attachment applies the entire rotation and torque.

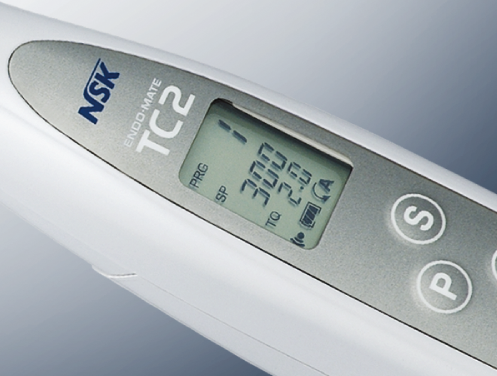

  • LCD Panel
    LCD Panel

    Large LCD panel and access-friendly key

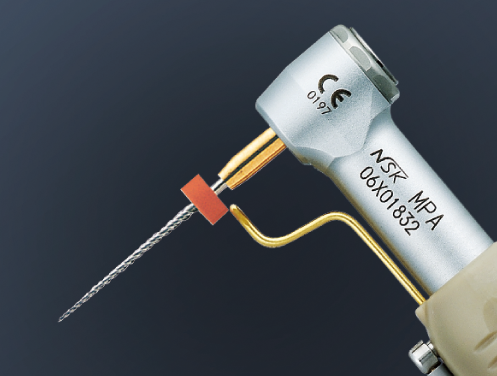

  • MPA / MPAS
    MPA / MPAS

    MPA and MPAS heads are equipped with built in probe ring which enable to use your Apex locator with the ENDO-MATE TC2 system. By combining an Apex Locator with NSK ENDO-MATE TC2, clinicians will be able to perform more accurate root canal preparations. All contra angle heads are autoclavable up to 135°C.

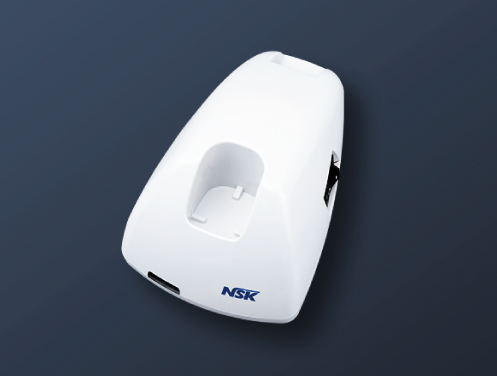

  • Fast Charger
    Fast Charger

    90min. quick charge with non-contact type charger

ENDO-MATE TC2

ENDO-MATE TC2

ENDO-MATE TC2 Complete Sets

  • Model:ENDO-MATE TC2 (120 V)
  • Order Code:Y1001036
  • Model:ENDO-MATE TC2 (230 V)
  • Order Code:Y1001027

Contents - ENDO-MATE TC2 Complete Set

  • MP-F16R Head
  • ENDO-MATE TC2 Motor
  • Battery Charger

ENDO-MATE TC2 Complete MPA Sets

  • Model:ENDO-MATE TC2 MPA (230 V)
  • Order Code:Y1001028

Contents - ENDO-MATE TC2 Complete MPA Set

  • MPA-F16R Head
  • ENDO-MATE TC2 Motor
  • Battery Charger

Specifications

  • Speed range
  • 2,000-9,000 min-1
  • Charge
  • 1.5 h (depending on workload)
  • Continuous use
  • 1.2 h (depending on workload)

Heads

MP-F20R / MP-F16R

  • Heads
    • Model:MP-F20R
    • Order Code:Y110044
    • Model:MP-F16R
    • Order Code:Y110096

    Specifications

    • Head
    • Miniature Head
    • For
    • Ni-Ti Files (Ø2.35)
    • Gear Ratio
    • 20:1 / 16:1 Reduction

    Features

    • Push Button Chuck / 360° Rotation

MPA-F16R

  • Heads
    • Model:MPA-F16R
    • Order Code:Y110097

    Specifications

    • Head
    • Miniature Head
    • For
    • Ni-Ti Files (Ø2.35) / Connection for Apex Locator (for Long Shank)
    • Gear Ratio
    • 16:1 Reduction

    Features

    • Push Button Chuck / 360° Rotation

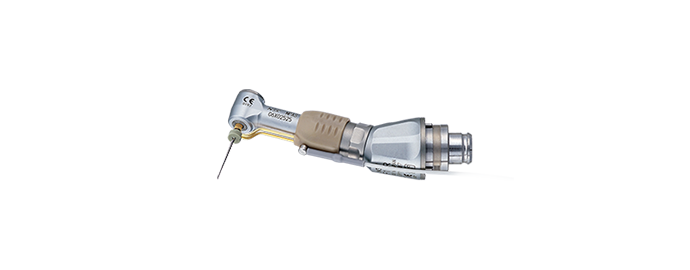

MPAS-F20R / MPAS-F16R

  • Heads
    • Model:MPAS-F20R
    • Order Code:Y110046
    • Model:MPAS-F16R
    • Order Code:Y110098

    Specifications

    • Head
    • Miniature Head
    • For
    • Ni-Ti Files (Ø2.35) / Connection for Apex Locator (for Short Shank)
    • Gear Ratio
    • 20:1 / 16:1 Reduction

    Features

    • Push Button Chuck / 360° Rotation
