MORE SAFETY,
MORE CAPACITY

Technology & Function

  • User-friendly, Easy to Read Operating Panel

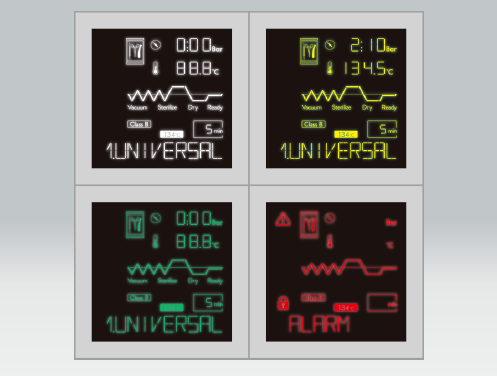

    User-friendly, Easy to Read Operating Panel

    With a sophisticated design and excellent visibility, the panel is easy to operate and maintain, with colors changing according to conditions, enhancing sterilization reliability.

  • Adaptive Heat System

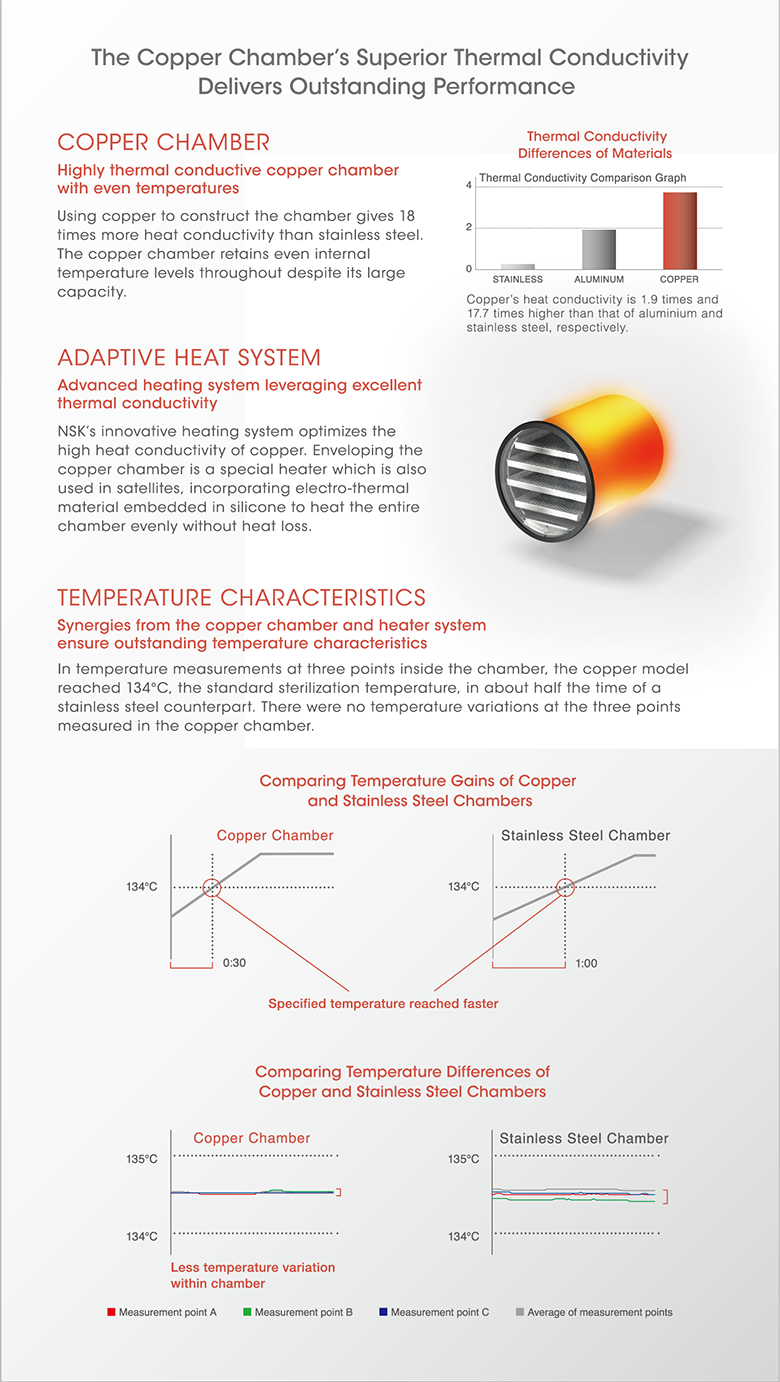

    Adaptive Heat System

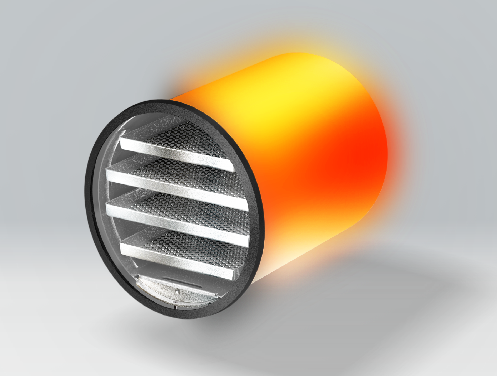

    Advanced heating system leveraging excellent thermal conductivity

    NSK's innovative heating system optimizes the high heat conductivity of copper.
    Enveloping the copper chamber is a special heater which is also used in satellites, incorporating electro-thermal material embedded in silicone to heat the entire chamber evenly without heat loss.

  • Sterilization Cycle Data Recording

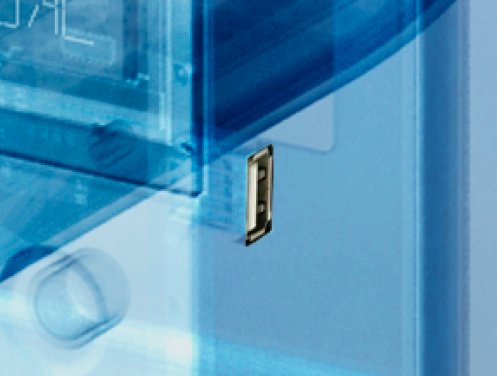

    Sterilization Cycle Data Recording

    All sterilization cycles a re recorded on a USB flash drive, and no special software is required to view and pr int records of all cycles. The system records all relevant cycle parameters against a unique date and time stamp.

  • Vacuum Sterilization for All Types of Instrument

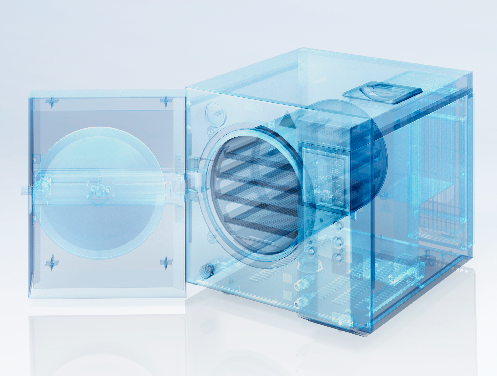

    Vacuum Sterilization for All Types of Instrument

    A vacuum pump removes air from the chamber and handpiece cavities before sterilization.

  • Bacterial Filter for Greater Safety

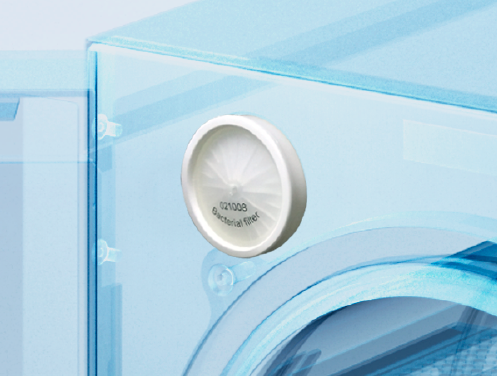

    Bacterial Filter for Greater Safety

    The iClave plus ventilates air through a bacterial filter during the drying phase, eliminating the possibility of re-contamination.

  • 50% More Capacity Than Conventional Autoclaves

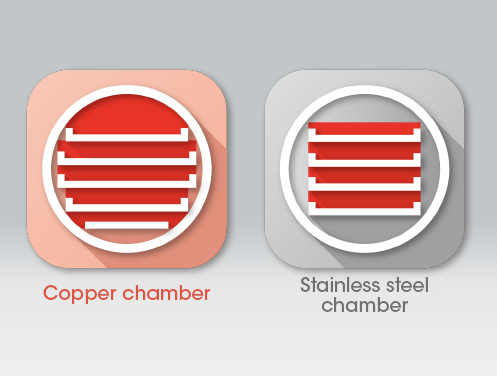

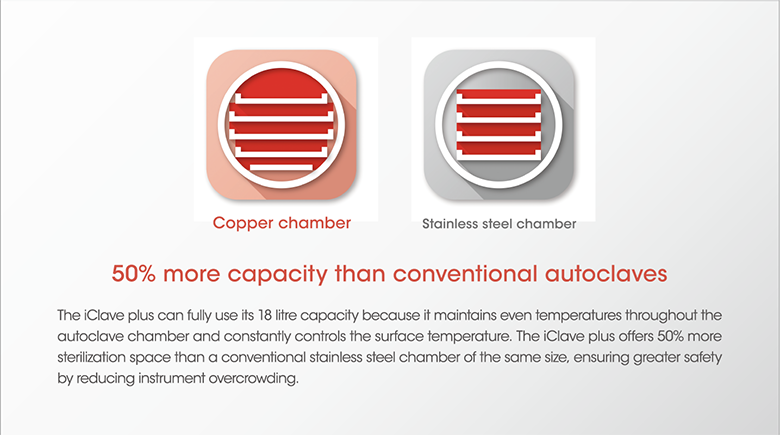

    50% More Capacity Than Conventional Autoclaves

    The iClave plus can fully use its 18 litre capacity because it maintains even temperatures throughout the autoclave chamber and constantly controls the surface temperature.
    The iClave plus offers 50% more sterilization space than a conventional stainless steel chamber of the same size, ensuring greater safety by reducing instrument overcrowding.

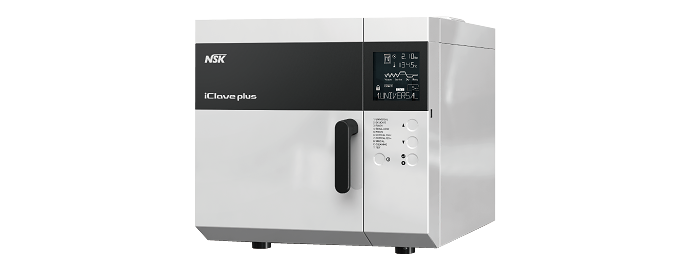

iClave plus

iClave plus

  • Model:iClave plus 230V
  • Order Code:Y1003077

Specifications

  • External Dimensions
  • W 445 x D 532 x H 428 mm
  • Chamber Dimensions
  • Ø240 x 384 mm
  • Chamber Capacity
  • 18 Litre
  • Net Weight
  • 55 kg
  • Maximum Power Consumption
  • 1,900 W
  • Supply Voltage CE
  • 230 V 50Hz
  • Air Expulsion System
  • Vacuum Pump 1, 3, 4 Vacuum
  • Max Load Solid
  • 4 kg
  • Max Load Porous
  • 1.5 kg
PROGRAMS PARAMETERS CLASS
1. UNIVERSAL 134°C 5 min 3 vacuum B
2. DELICATE 121°C 20 min 3 vacuum B
3. FLASH 134°C 3 min 2 vacuum S
4. SMALL LOAD*1 134°C 5 min 3 vacuum B
5. PRION 134°C 18 min 3 vacuum B
6. CRITICAL 134°C 134°C 5 min 4 vacuum B
7. CRITICAL 121°C 121°C 20 min 4 vacuum B
8. SPECIAL 105-135°C 3-90 min 2-4 vacuum -

• Bowie & Dick : 134°C / 3.5 min / 3 vacuum
• Vacuum test : 20 min
*1 small load : included hollow instruments type A and B (MAX 0.5 kg)
