Smart and Portable

Ultra-slim & Compact Handpiece with Torque Control & Auto Reverse

ENDO-MATE DT is smart enough to memorise exact speed and torque settings for up to 9 Ni-Ti files from all major suppliers. Its auto-reverse features 3 working modes - autoreverse on, auto-stop, auto-reverse off. The motor reacts when load reaches the preset level of torque. With on-off switch, it offers flexibility of pedal-free operation (optional foot control unit available), while providing convenience of full portability with two-way power supply, either AC or battery driven.

Technology & Function

  • Push Type Ultra Miniature Head
    Push Type Ultra Miniature Head

    Allows fast and easy exchange of files during procedures. Compact head offers excellent visibility of reatment spots.

  • Quick Joint
    Quick Joint

    Quick release system allows for easy head exchange. Compact head allows excellent visibility of the treatment spot.

  • 6 Head Angles
    6 Head Angles

    Depending on the position of treatment site, the head angle can be adjusted to the best angle.

  • Foot Pedal
    Foot Pedal

    Micromotor On / Off operation is activated via the convenient finger switch located on the micromotor. An Optional foot control is available.

  • Flat Panel
    Flat Panel

    Flat control panel allows simple user friendly operation.

  • A Liquid Crystal Display
    A Liquid Crystal Display

    Wide screen provides high visibility.

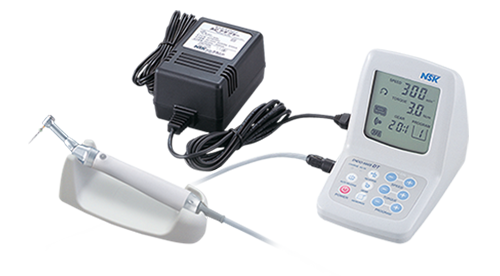

ENDO-MATE DT

ENDO-MATE DT

ENDO-MATE DT with 20:1 Head

  • Model:ENDO-MATE DT (120 V)
  • Order Code:Y141120
  • Model:ENDO-MATE DT (230 V)
  • Order Code:Y141121

Contents - ENDO-MATE DT with 20:1 Head

  • Control Unit
  • Motor and Cord
  • MP-F20R Head (20:1)
  • Handpiece Stand
  • AC Adaptor

ENDO-MATE DT without Head

  • Model:ENDO-MATE DT W/O (120 V)
  • Order Code:Y141123
  • Model:ENDO-MATE DT W/O (230 V)
  • Order Code:Y141124

Contents - ENDO-MATE DT without Head

  • Control Unit
  • Motor and Cord
  • Handpiece Stand
  • AC Adaptor

Specifications

  • Power Supply
  • AC 120 V 60 Hz or 230 V 50/60 Hz and Battery pack
  • Number of Programs
  • 9
  • Max Torque
  • 7 Ncm (When Using 20:1 Head)
  • Speed Range
  • 100-13,000 min-1 (with 20:1, 4:1, 1:1 Geared Heads)
  • Charge / Continuous Use
  • 5 h / 2 h (Depending on Workload)
  • Dimensions
  • W 92 x D 148 x H 124 mm
  • Weight
  • Unit 456 g / Motor Handpiece & Cord 92 g

Heads

MP-F20R / MP-F16R

  • Heads
    • Model:MP-F20R
    • Order Code:Y110044
    • Model:MP-F16R
    • Order Code:Y110096

    Specifications

    • Head
    • Miniature Head
    • For
    • Ni-Ti Files (Ø2.35)
    • Gear Ratio
    • 20:1 / 16:1 Reduction

    Features

    • Push Button Chuck / 360° Rotation

MPA-F16R

  • Heads
    • Model:MPA-F16R
    • Order Code:Y110097

    Specifications

    • Head
    • Miniature Head
    • For
    • Ni-Ti Files (Ø2.35) / Connection for Apex Locator (for Long Shank)
    • Gear Ratio
    • 16:1 Reduction

    Features

    • Push Button Chuck / 360° Rotation

MPAS-F20R / MPAS-F16R

  • Heads
    • Model:MPAS-F20R
    • Order Code:Y110046
    • Model:MPAS-F16R
    • Order Code:Y110098

    Specifications

    • Head
    • Miniature Head
    • For
    • Ni-Ti Files (Ø2.35) / Connection for Apex Locator (for Short Shank)
    • Gear Ratio
    • 20:1 / 16:1 Reduction

    Features

    • Push Button Chuck / 360° Rotation
