Technology & Function

  • Unsurpassed Durability

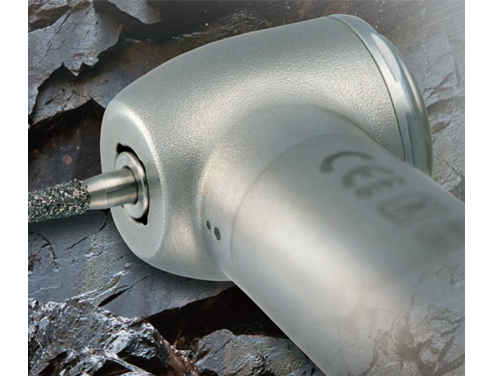

    Unsurpassed Durability

    Built to excel in clinical situations. Featuring a scratch-resistant stainless steel body and sturdier turbine head. Thanks to its uniquely designed shock-resistant head design, Pana-Max2's turbine rotor won't get damaged even if dropped from two meters onto a concrete floor.

  • Exceptional Longevity

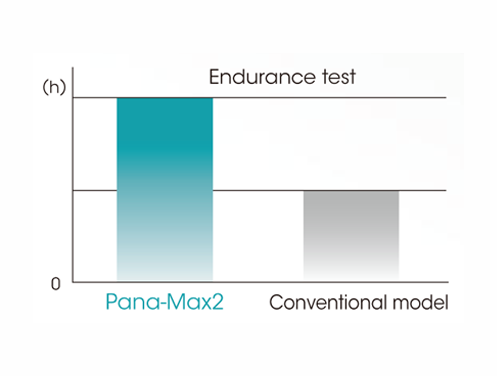

    Exceptional Longevity

    Newly designed bearing structure with greater wear resistants and extended lifespan.

  • 30% Power Boost

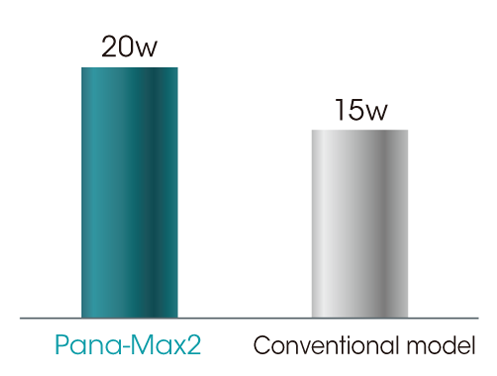

    30% Power Boost

    Pana-Max2 is dramatically more powerful than its predecessors thanks to the combination of NSK's air turbine simulation technologies. Rated at a maximum of 20 watts, this new model boasts the highest power rating in its class. That concentrated power, along with the bur's high rotational accuracy, creates a synergistic effect that ensures fast, precise treatments.

  • Slim-line Stainless Steel Body

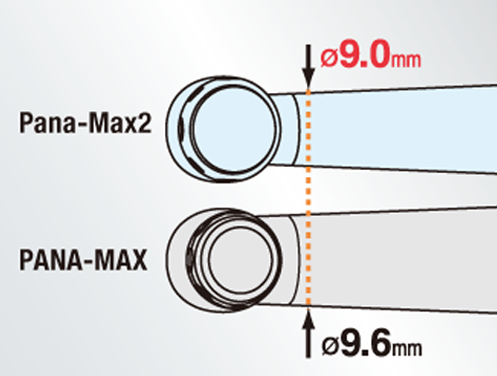

    Slim-line Stainless Steel Body

    Pana-Max2's slim-line body guarantees excellent accessibility to the entire oral cavity. As a result visibility of the treatment area is maximized, allowing you to work with total efficiency.

  • Interchangeable Cartridge
    Interchangeable Cartridge

    Cartridges are easily replaced in your practice helping you reduce costs and down-time. The replacement cartridge incorporates the spray holes to guarantee cartridge and water spray always work well together.

  • Push Button Chuck
    Push Button Chuck

    Push Button Chuck is NSK's original push button auto-chuck mechanism that tensions the bur grip during rotation. It allows one-touch bur insertion and removal without tools. The bur lock mechanism is designed so that bur retention strength increases when high loads are applied to the bur.

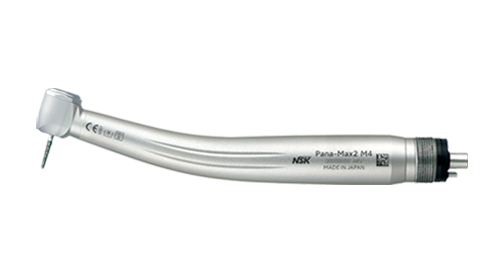

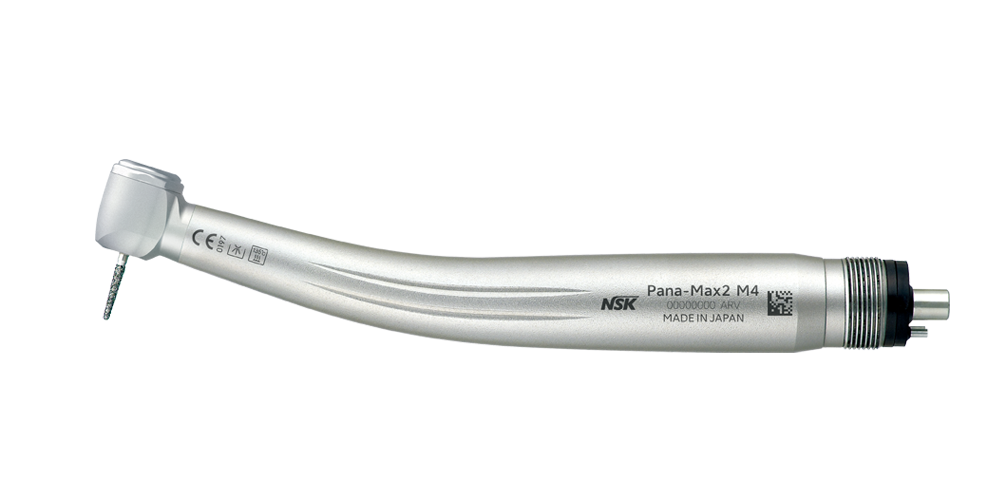

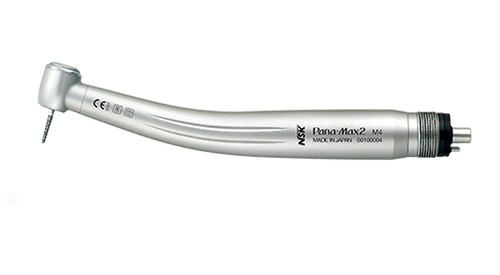

Pana-Max2 M4

Pana-Max2 M4

  • Non-Optic
  • Model:Pana-Max2 M4
  • Order Code:P1154

Specifications

  • Rotation
  • 350,000-450,000 min-1
  • Head Size
  • Ø11.2 x H 13.4 mm
  • Water Spray
  • Single Spray
  • Body Material
  • Stainless Steel

Features

  • Ceramic Bearings
  • Push Button Chuck
  • Clean Head System
  • Air Pressure Regulating Valve
  • Anti-Retraction Valve
