IMPECCABLE
ACCRURACY

Shorter, lighter and
more powerful
consistently
excellent perfomance

SYNERGY IN
IMPLANTOROGY
Two linked surgical systems that
use a single foot control.
A brand new approach to implant
aund surgical treatment.

Technology & Function

  • Shorter & Lighter
    Shorter & Lighter

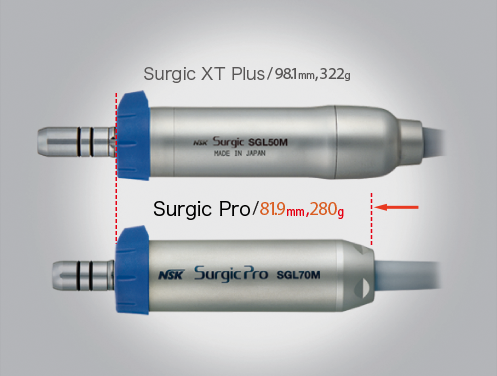

    This new surgical micromotor is 16.2mm shorter and weighs 42g less compared to the conventional optic surgical micromotor.

  • LED
    LED

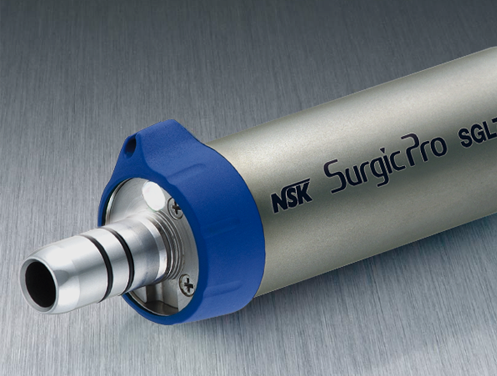

    LED illumination helps the clinicians to focus more easily on the treatment area and contributes to precise surgery

    Clearer : LEDs generate natural daylight quality light which gives clearer vision when compared to halogen light.
    Durable : LED light sources are longer lasting and more durable than halogen bulbs.

  • Advanced Handpiece Calibration
    Advanced Handpiece Calibration

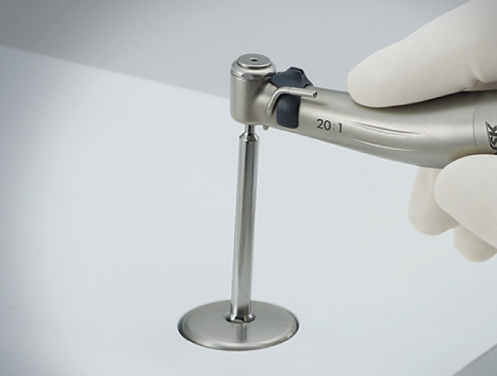

    Use NSK Surgic Pro AHC to calibrate micromotor and handpiece to the rotational resistance of each individual handpiece prior to operation. AHC guarantees extremely accurate speed and torque for maximum safety during operation.

  • USB Memory & Data
    USB Memory & Data

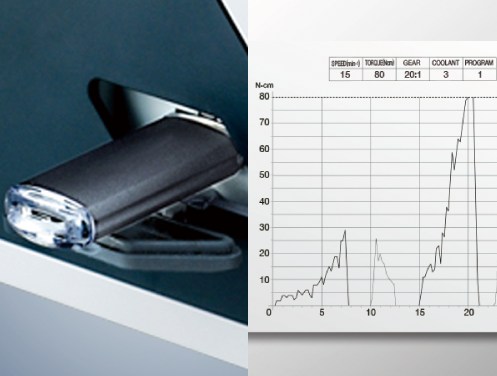

    Treatment data can be accessed and downloaded using a USB memory stick. You do not need to install any specific software as the data can be displayed with general-use software which can display csv or bitmap files.
    *memory stick isn't included.
    *only SurgicPro+

  • Foot Control
    Foot Control

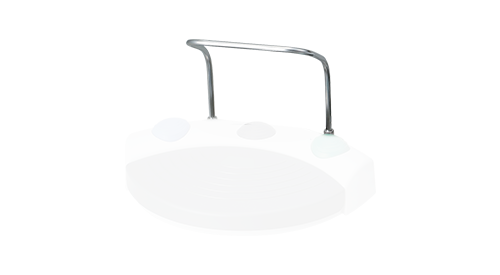

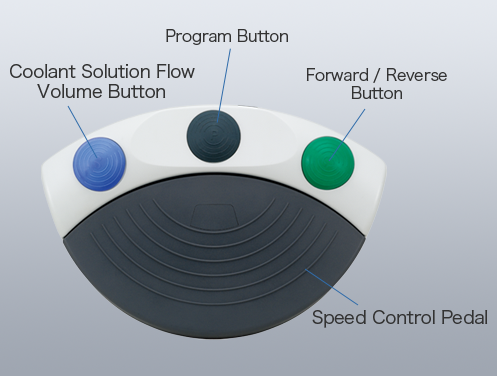

    The Foot Control is user friendly and allows operation of all functions within the preset parameters without touching the control panel to avoid accidental activation of the micromotor outside the preset limits. The Surgic Pro/Surgic Pro+ is certificated according to IPX8.

  • Link
    Link

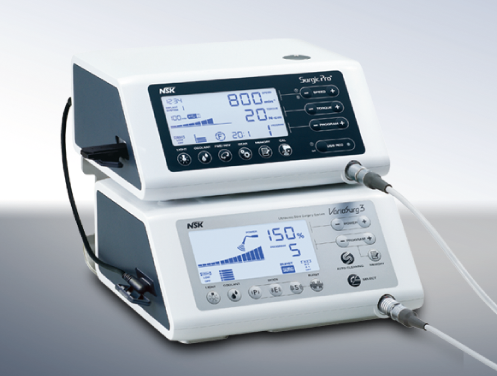

    You can operate both the implant motor Surgic Pro and VarioSurg3 ultrasonic bone surgery system with a single foot control by linking the two units with the link cable. Put the two units on the Link Stand and create a compact and space saving, all encompassing surgical treatment centre. The two systems can also be installed together compactly with a Link Stand that takes up minimal space.

Surgic Pro+ / VarioSurg3

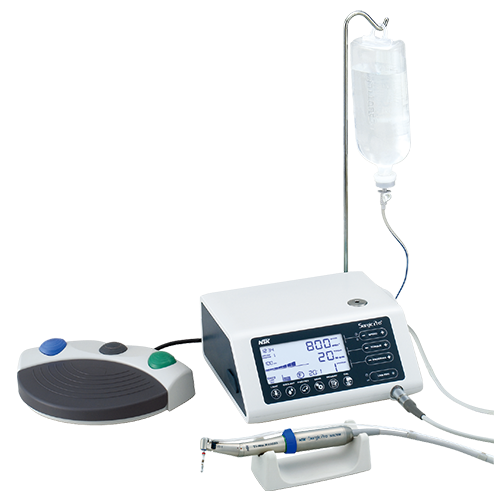

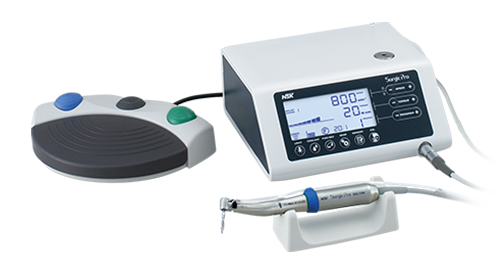

Surgic Pro+

Surgic Pro+

  • Optic
  • Model:Surgic Pro+ OPT-D (120 V)
  • Order Code:Y1002095
  • Optic
  • Model:Surgic Pro+ OPT-D (230 V)
  • Order Code:Y1002096

Specifications

  • Power Supply
  • AC 120 V or 230 V 50/60 Hz
  • Max. Pump Output
  • 75 mL / min
  • Programs
  • 8 Programs / Implant Systems
  • Dimensions
  • W 268 x D 220 x H 100 mm
  • USB I/F
  • 1 Port
  • Built in Memory
  • 100 min
  • Torque
  • 5-80 Ncm
  • Motor Speed
  • 200-40,000 min-1
  • Light Power (LED Micromotor)
  • Over 32,000 LUX
  • Foot Control Functions
  • Program Button, Speed Control Pedal, Coolant Solution Flow Volume Button, Forward / Reverse Button

Contents

  • Control Unit with Data Storage Facility
  • SGL70M LED Micromotor
  • FC-78 Foot Control
  • X-DSG20L Optic Handpiece (20:1 Reduction)
  • Irrigation Tube (5 pcs) and Other Accessories

Surgic Pro

Surgic Pro

  • Optic
  • Model:Surgic Pro OPT (120 V)
  • Order Code:Y1001949
  • Optic
  • Model:Surgic Pro OPT (230 V)
  • Order Code:Y1001933

Specifications

  • Power Supply
  • AC 120 V or 230 V 50/60 Hz
  • Max. Pump Output
  • 75 mL / min
  • Programs
  • 8 Programs / Implant Systems
  • Dimensions
  • W 265 x D 220 x H 100 mm
  • Torque
  • 5-80 Ncm
  • Motor Speed
  • 200-40,000 min-1
  • Light Power (LED Micromotor)
  • Over 32,000 LUX
  • Foot Control Functions
  • Program Button, Speed Control Pedal, Coolant Solution Flow Volume Button, Forward / Reverse Button

Contents

  • Control Unit without Data Storage Facility
  • SGL70M LED Micromotor
  • FC-78 Foot Control
  • X-SG20L Optic Handpiece (20:1 Reduction)
  • Irrigation Tube (5 pcs) and Other Accessories
