Unique 45-degree Angled Head Provides Incredible Accessibility

The slim-form Ti-Max X450 series possesses a unique 45-degree angled head specially designed to access hard-to-reach areas for sectioning and extraction of third molars and other impacted teeth. The X450's robust 21 watts of cutting power and effective cooling system - featuring triple water jets - ensure safe and effective treatment during a variety of surgical procedures.

Technology & Function

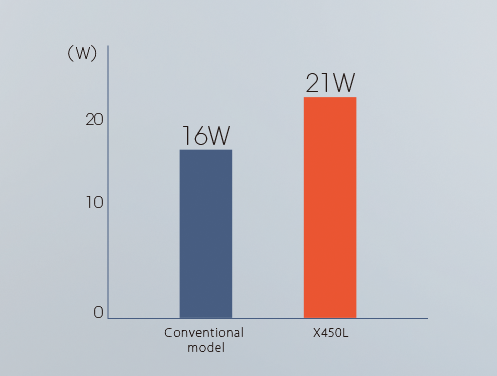

  • The More Powerful
    The More Powerful

    NSK’s original twin-nozzle head fully transmits the power of the air turbine to the X450's rotor, generating the high torque needed for powerful, consistent cutting.

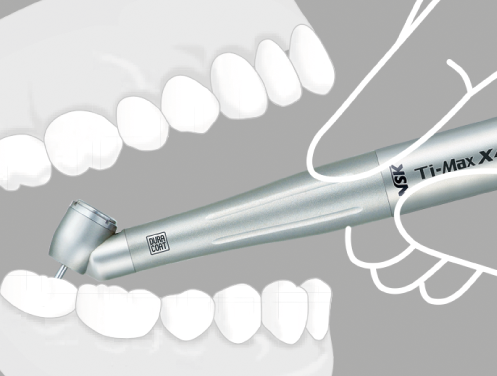

  • 45° Head
    45° Head

    The 45-degree angled head offers excellent accessibility and visibility during root separation procedures and the removal of hard tissue covering impacted third molars.

  • Triple Water Spray
    Triple Water Spray

    NSK's Triple Water Jet system efficiently bathes the bur at all operating speeds, providing maximum cooling.

  • Titanium Body
    Titanium Body

    Titanium body*. Light and very strong pure titanium is used for the body. The light handpiece reduces the burden on the hands during operations, and its enhanced hardness also improves its ability for autoclave sterilization. The biocompatible properties of titanium eliminate concern over allergies to metals.
    *Titanium is used only for the exterior parts, and not for the interior.

  • DURACOAT
    DURACOAT

    NSK's latest surface enhancement technology, takes advantage of the non allergic and biocompatible properties of titanium to further improve durability. DURACOAT creates a smooth, scratch resistant surface which is comfortable to hold.

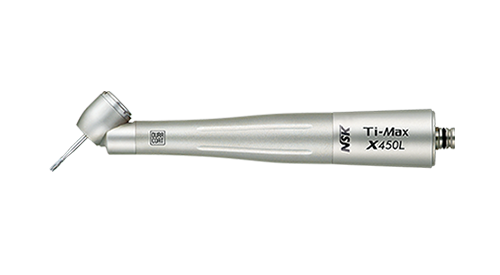

X450L

X450L

  • Optic
  • Model:X450L
  • Order Code:P1078
  • Non-Optic
  • Model:X450
  • Order Code:P1088

Specifications

  • Head
  • 45° Angle Head
  • Power
  • 21 W
  • Rotation
  • 380,000-450,000 min-1
  • Head Size
  • Ø11.2 x H 13.5 mm
  • Water Spray
  • Triple Water Jet
  • Body Material
  • Titanium
  • Body Coating
  • DURACOAT

Features

  • Cellular Glass Optics
  • Ceramic Bearings
  • Clean Head System
  • Push Button Chuck

* For FG extra-long bur (25 mm) only

X450KL

X450KL

  • Optic
  • Model:X450KL
  • Order Code:P1079

Specifications

  • Head
  • 45° Angle Head
  • Power
  • 18 W
  • Rotation
  • 380,000-450,000 min-1
  • Head Size
  • Ø11.2 x H 13.5 mm
  • Water Spray
  • Triple Water Jet
  • Body Material
  • Titanium
  • Body Coating
  • DURACOAT

Features

  • Cellular Glass Optics
  • Ceramic Bearings
  • Clean Head System
  • Push Button Chuck

* For FG extra-long bur (25 mm) only

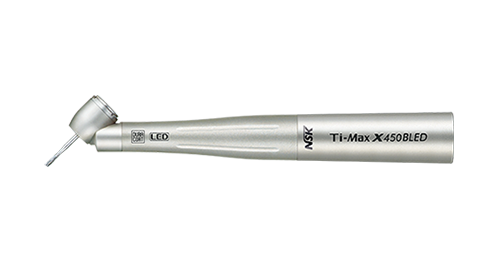

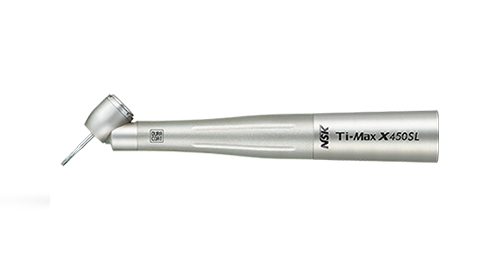

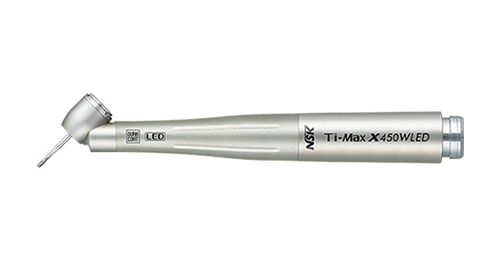

Lineup
