High Performance Reliable Handpieces at an Affordable Price

The Pana-Max PLUS series of high speed handpieces has been enhanced to meet expectations in modern dental surgeries. Precision engineered to offer the power and reliability required to perform clinical procedures. The new Pana-Max PLUS turbine cartridge delivers increased smoothness, while the bur retention system has been engineered to securely retain the bur under increased torque loads. The stainless steel body is comfortable in the hand and is angulated at the optimum degree for excellent direct visibility of the operating site, without compromise.

Technology & Function

  • Push Button
    Push Button

    Push Button Chuck is NSK's original push button auto-chuck mechanism that tensions the bur grip during rotation. It allows one-touch bur insertion and removal without tools. The bur lock mechanism is designed so that bur retention strength increases when high loads are applied to the bur.
    A special coating is applied to the pusher section for even lighter and easier push button operation when exchanging burs.

  • Quattro Water Spray
    Quattro Water Spray

    The NSK Quattro Water Spray effectively cools the entire surface of the bur with a high cooling effect, leaving no areas untreated.

  • Interchangeable Cartridge
    Interchangeable Cartridge

    Cartridges are easily replaced in your practice helping you reduce costs and down-time. The replacement cartridge incorporates the spray holes to guarantee cartridge and water spray always work well together.

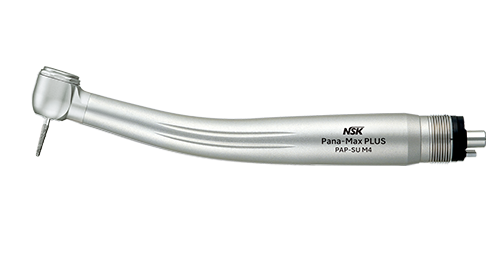

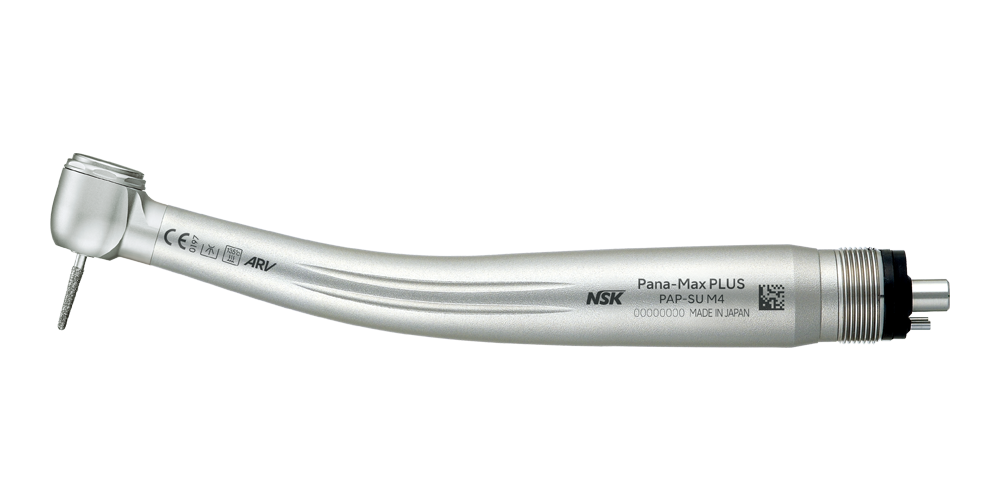

PAP-SU M4

PAP-SU M4

  • Non-Optic
  • Model:PAP-SU M4
  • Order Code:P1022

Specifications

  • Head
  • Standard Head
  • Power
  • 18 W
  • Rotation
  • 340,000-410,000 min-1
  • Head Size
  • Ø12.1 x H 13.3 mm
  • Water Spray
  • Quattro Spray
  • Body Material
  • Stainless Steel

Features

  • Ceramic Bearings
  • Clean Head System
  • Push Button Chuck
  • Interchangeable Cartridge

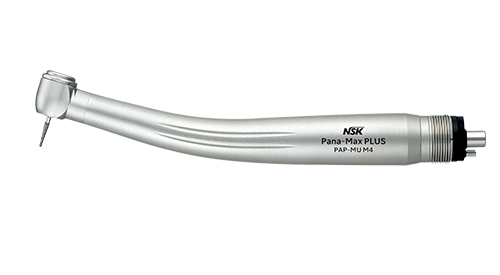

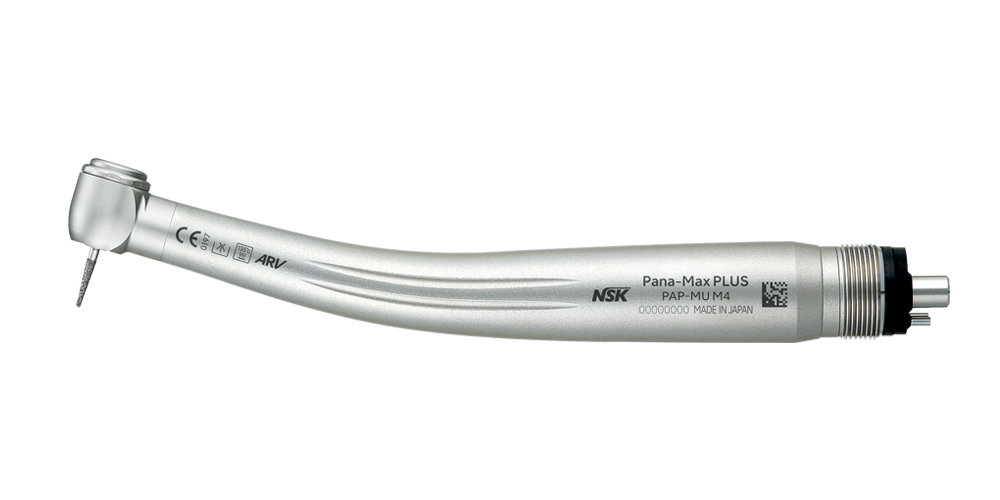

PAP-MU M4

PAP-MU M4

  • Non-Optic
  • Model:PAP-MU M4
  • Order Code:P1021

Specifications

  • Head
  • Miniature Head
  • Power
  • 16 W
  • Rotation
  • 380,000-450,000 min-1
  • Head Size
  • Ø10.6 x H 12.4 mm
  • Water Spray
  • Quattro Spray
  • Body Material
  • Stainless Steel

Features

  • Ceramic Bearings
  • Clean Head System
  • Push Button Chuck
  • Interchangeable Cartridge

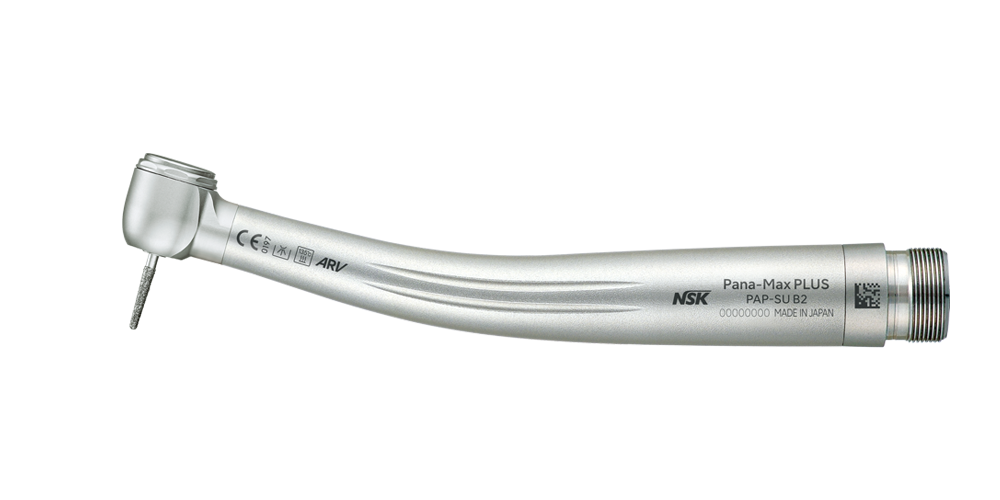

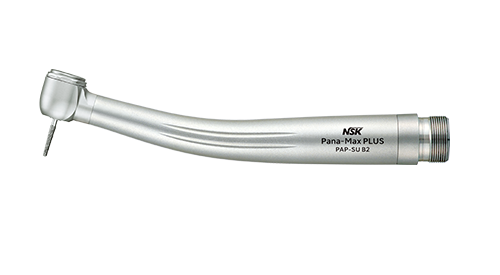

PAP-SU B2

PAP-SU B2

  • Non-Optic
  • Model:PAP-SU B2
  • Order Code: P1024

Specifications

  • Head
  • Standard Head
  • Power
  • 18 W
  • Rotation
  • 340,000-410,000 min-1
  • Head Size
  • Ø12.1 x H 13.3 mm
  • Water Spray
  • Quattro Spray
  • Body Material
  • Stainless Steel

Features

  • Ceramic Bearings
  • Clean Head System
  • Push Button Chuck
  • Interchangeable Cartridge

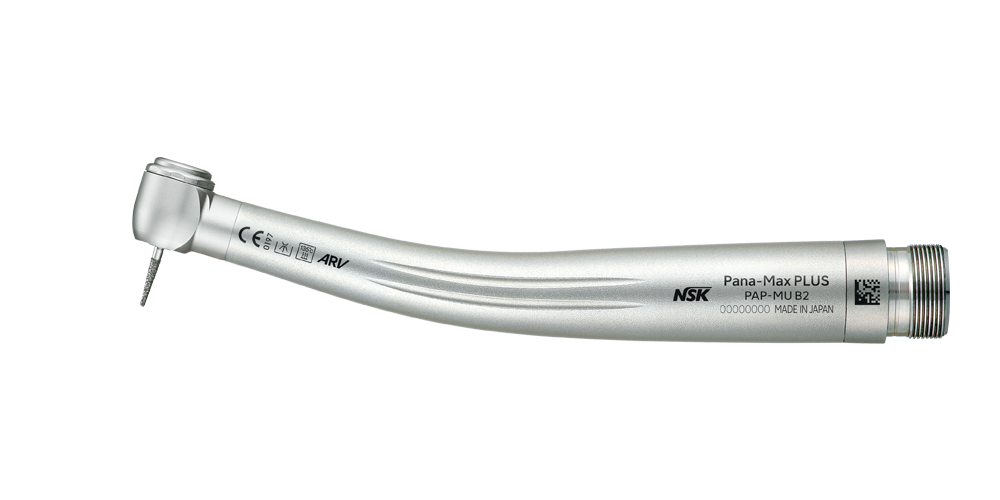

PAP-MU B2

PAP-MU B2

  • Non-Optic
  • Model:PAP-MU B2
  • Order Code:P1023

Specifications

  • Head
  • Miniature Head
  • Power
  • 16 W
  • Rotation
  • 380,000-450,000 min-1
  • Head Size
  • Ø10.6 x H 12.4 mm
  • Water Spray
  • Quattro Spray
  • Body Material
  • Stainless Steel

Features

  • Ceramic Bearings
  • Clean Head System
  • Push Button Chuck
  • Interchangeable Cartridge
